CSL Part Number: 15424

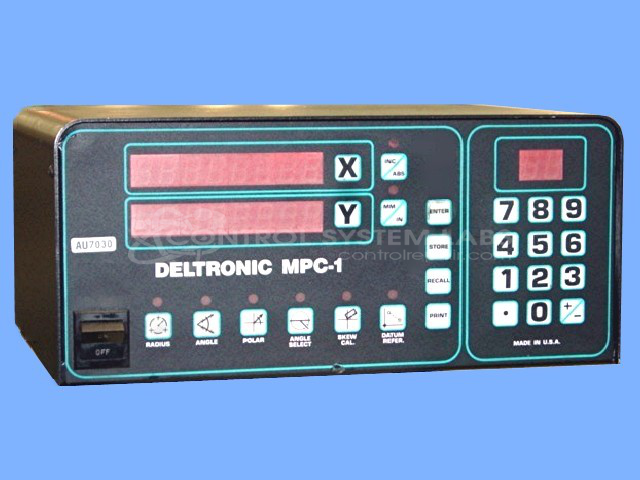

Product Overview: The Deltronic MPC-1 is a two-axis digital readout (DRO) control used with linear encoders or scales to display precise position measurements on machine tools such as mills, lathes, and grinders. It features battery-backed NVRAM for storing axis correction factors and preset positions, allowing operators to compensate for scale errors and recall dimensional setpoints. The unit accepts encoder inputs on X and Y axes, performs mathematical functions on stored values, and displays real-time position data. Common in metalworking and precision manufacturing applications where accurate dimensional feedback is required during machining operations.
Category: Servo Controls
Manufacturer: Deltronic
Manufacturer Part Number: MPC-1
Please include one encoder with this control for final testing.
Common Failures
Units evaluated by CSL have shown issues with the X-axis reading larger than the actual travel distance. Investigation has identified defective NVRAM chips and degraded power supply capacitors as contributing factors. Power supply output has been found to be lower than specifications in some cases, which can lead to measurement inaccuracies and data retention issues.
Repair Approach
CSL repairs typically involve replacing the NVRAM chip and electrolytic capacitors in the power supply section. Power supply output is adjusted to meet required voltage levels following component replacement. Testing verifies that NVRAM settings and values are retained properly after power cycling.
Testing & Quality
Repaired units undergo diagnostic and burn-in testing. This includes measurement accuracy verification, where travel distances are compared to display readings. Power supply voltage and ripple are brought within acceptable ranges, and front panel controls are tested for proper operation. Extended burn-in testing is conducted to verify data retention and reliability. Units that complete testing successfully are returned to service.
Service and repair your broken Deltronic part
We can repair your Deltronic model MPC-1 in our facility. Let our skilled technicians get your Deltronic back in operation quickly.
