Repair
Repair Price: $ 1,672.00
Purchase
CSL Part Number: 107202

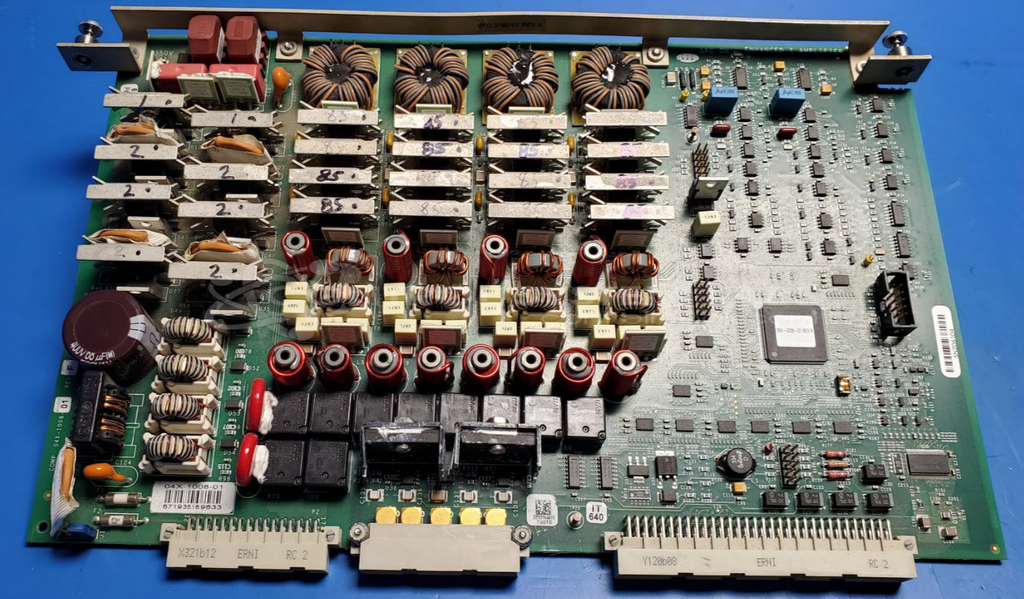

Product Overview: The Enhanced I Amplifier Card (04X-1008-01 REV F) is a control board manufactured by Doble Engineering for use in power system test equipment and simulators. It provides signal amplification for test current outputs in protective relay testing applications. The card operates on dual ±12V power supplies and features multiple amplifier channels with integrated temperature monitoring. It is typically installed in Doble test sets used for commissioning and maintenance of electrical power systems in utilities, substations, and industrial facilities.
Category: Control Board
Manufacturer: Doble Engineering
Manufacturer Part Number: 04X-1008-01 REV F
Include problem with the control. Warranties to repaired section only.
Common Failures
One of the main issues reported for this product is an "Amplifier 4 Over Temp Error" that appears on the front panel upon power up. This error prevents the simulator from functioning when this card is installed.
Repair Approach
Initial diagnostic testing involves checking all outputs and applying power supply voltages. These tests typically show normal conditions with no current draw anomalies. However, the error may persist, indicating an issue that requires further evaluation.
Testing & Quality
Testing includes examining voltage and current draw levels during burn-in testing. In some cases, further testing may not be possible due to equipment or procedure limitations, which can lead to a "No Fault Detected" (NFD) result in certain areas of the circuitry.
Limited Repair
The Doble Engineering part number is only available as a limited repair at our facility. Repairs to this item may be limited due to several reasons:
- Availability of parts
- Less than 100% test ability due to required support equipment
To have us attempt a repair on your Doble Engineering part follow these steps:
Step 1 -
Click the Repair Now button above to add the part and complete the RMA form.
Step 2 -
Print the RMA form that is sent to your email, and put it in the box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
After we receive your item, we will perform an inspection and an authorization to repair will be sent for your approval. Work will begin after your authorization is received.
