CSL Part Number: 84491

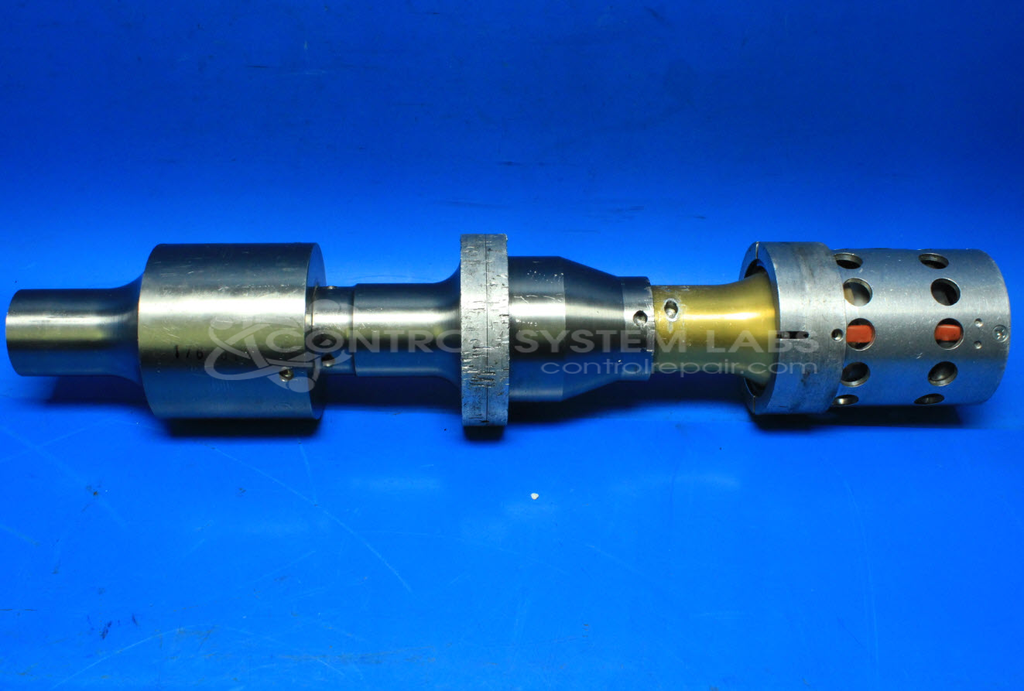

Product Overview: An ultrasonic stack assembly operating at 20 KHz, consisting of a converter, booster, and horn. It converts high-frequency electrical energy from a generator into mechanical vibration for ultrasonic plastic welding, joining, and assembly applications. Precise resonant frequency is critical to proper operation.
Category: Ultrasonics
Manufacturer: Dukane
Manufacturer Part Number: unknown
Requires sending in for a repair quote. Please include the generator as an aid in repair.
Common Failures
We have observed instances where a crack in the horn or damaged threads in the booster can affect the resonant frequency, which may cause the assembly to malfunction or overload the generator. These issues can disrupt the operational compatibility of the components.
Repair Approach
Our standard repair procedure involves separating the stack into its components for detailed examination. We may replace worn o-rings, clean the stack thoroughly, and remove the horn to isolate the issue and determine whether the problem originates from the horn, booster, or related components.
Service and repair your broken Dukane part
We can repair your Dukane model unknown in our facility. Let our skilled technicians get your Dukane back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
