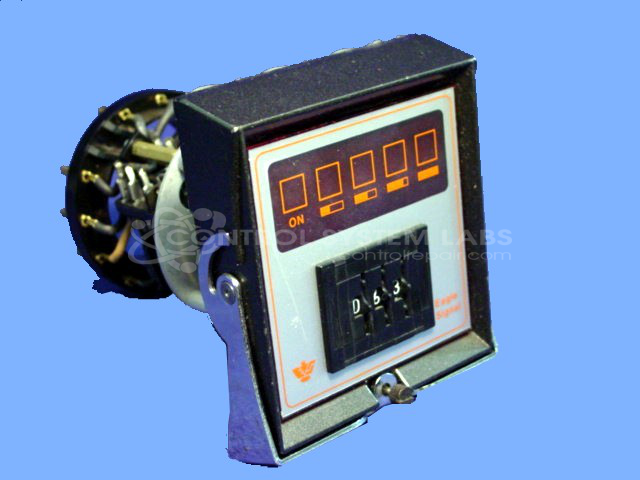

Eagle Signal CD301A6 SS Reset Timer 120V 3 Digit Timer
Repair
Repair Price: $ 312.00
Purchase
CSL Part Number: 1178
Product Overview: The Eagle Signal CD301A6 is a 120VAC solid-state reset timer with a 3-digit thumbwheel display for interval setting. It provides time-delay control with adjustable timing ranges and typically uses relay outputs to switch loads. Commonly found in paper processing equipment and industrial machinery requiring precise timing cycles, it features neon indicator lamps for status monitoring. The CD301 series is widely used for controlling motors, conveyors, and sequential operations in manufacturing environments.
Category: Timers
Manufacturer: Eagle Signal
Manufacturer Synonyms: DANAHER
Manufacturer Part Number: CD301A6
Also Known As(AKA): 120VAC
```html
Common Failures
A common failure for this product is the timer not timing out. This issue is often associated with defective neon lamps and thumbwheel components.
Repair Approach
The typical repair involves replacing the faulty neon lamps and thumbwheel. In some cases, resoldering wires on relay contacts and cleaning the relay contacts may be necessary.
Testing & Quality
After repairs, a burn-in test with a lamp load is conducted to confirm that the timer functions across all ranges.
```Service and repair your broken Eagle Signal part
We can repair your Eagle Signal model CD301A6 in our facility. Let our skilled technicians get your Eagle Signal back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
