Repair
Repair Price: $ 448.00
Purchase
CSL Part Number: 30652

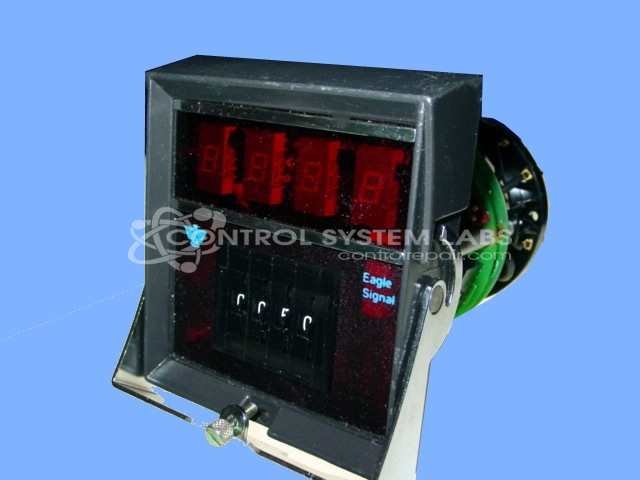

Product Overview: A programmable electromechanical reset timer with a 4-digit thumbwheel setting and display for precise time-delay control. It uses microprocessor logic and relay outputs to sequence or control automated machinery in industrial process and manufacturing equipment.
Category: Timers
Manufacturer: Eagle Signal
Manufacturer Synonyms: DANAHER
Manufacturer Part Number: CT531A603
Common Failures
Common issues with this product include defective solder joints, relay failures, broken traces, and aged capacitors. Additionally, there have been cases where the microprocessor incorrectly reads inputs due to these failures.
Repair Approach
Repairs typically involve resoldering joints, replacing defective relays and capacitors, and repairing broken circuit traces. Thorough cleaning of the control components is also performed. In cases where the microprocessor is defective, replacement might be recommended, depending on the evaluation findings.
Testing & Quality
Repaired units are thoroughly tested to confirm that they function as designed. Testing includes operational checks followed by a burn-in period to verify reliability and performance stability under load conditions.
Service and repair your broken Eagle Signal part
We can repair your Eagle Signal model CT531A603 in our facility. Let our skilled technicians get your Eagle Signal back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
