Repair
Repair Price: $ 292.00
Purchase
CSL Part Number: 80433

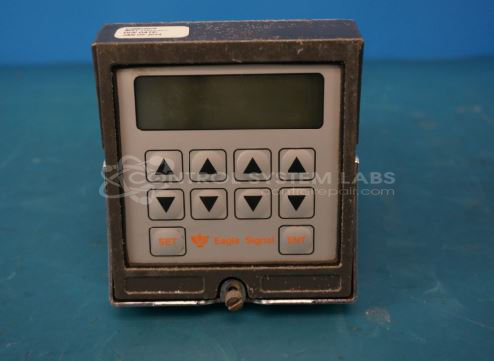

Product Overview: The Eagle Signal CX202A6 is a microprocessor-based timer/counter with a 10 amp DPDT relay output rated for 120 VAC operation. Part of the CX200 series, it features a programmable digital display with membrane keypad for setting timing or counting functions. Commonly used in industrial mixing equipment, batch processing, and automated machinery requiring precise time or event counting control. The unit mounts via a 15-terminal rear connector ring and operates without an internal battery, relying on DIP switch configuration for mode selection and parameter settings.
Category: Timer / Counter
Manufacturer: Eagle Signal
Manufacturer Synonyms: DANAHER
Manufacturer Part Number: CX202A6
Common Failures
Frequent issues reported include non-responsive buttons and intermittent time control, often caused by corrosion or damaged components. Defective relays and physical damage to terminal rings and keypad components are also common.
Repair Approach
Repairs commonly involve cleaning corroded contacts, replacing defective components such as relays and keypads, and repairing circuit board traces. Preventative maintenance may include gasket replacements and addressing mechanical damage. Diagnostic tests are employed to identify faults effectively.
Testing & Quality
All units undergo burn-in testing with load to ensure reliability. Testing verifies correct functioning of timers, keypads, and output cycles. Testing includes matching timing functions to precise durations and ensuring all display segments operate correctly.
Service and repair your broken Eagle Signal part
We can repair your Eagle Signal model CX202A6 in our facility. Let our skilled technicians get your Eagle Signal back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
Once the user has seen at least one product this snippet will be visible.
