CSL Part Number: 85504

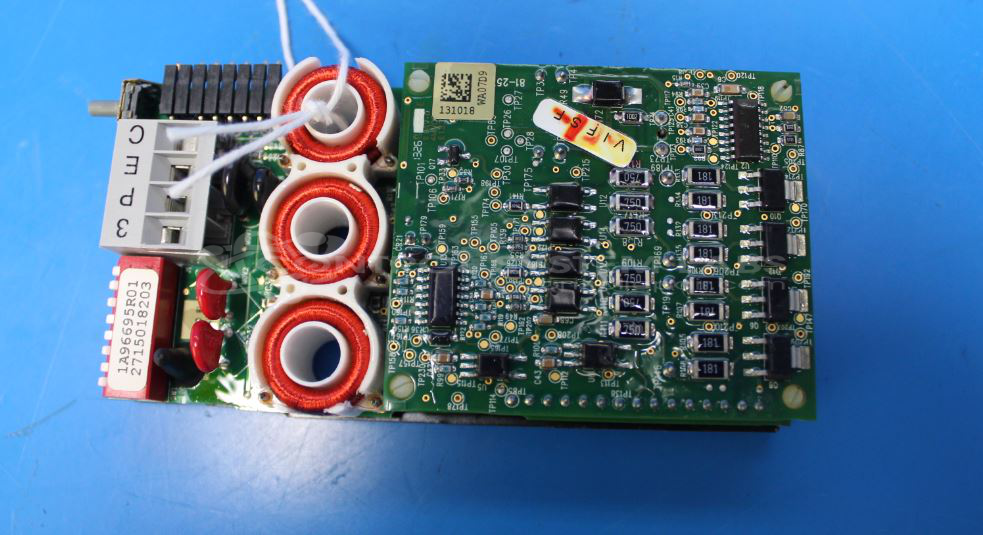

Product Overview: The Motor Starter Board for W+200M2CFC size 2 is a control board used in Eaton's W200 series motor starters, specifically designed for size 2 contactors. It provides logic control and switching functions for motor starting applications in industrial automation and process control systems. This board interfaces with the motor starter's power contacts and control circuitry to enable reliable motor operation. It is part of the Cutler Hammer product line and compatible with W200 series motor control assemblies used across manufacturing, material handling, and HVAC equipment.
Category: Control Board
Manufacturer: Eaton
Manufacturer Part Number: 1A96695R01
Brand: Eaton Cutler, Cutler Hammer
An evaluation fee may apply.
Common Failures
Recurring issues with this product include blown fuses in the transformer and overheating near specific terminals. Another common problem is the failure of the metal oxide varistor (MOV), which can lead to electrical disruptions. A missing capacitor has also been noted as a frequent issue.
Repair Approach
The repair process typically involves diagnostic testing, including the use of Huntron and digital multimeters. Blown MOVs are replaced, and missing or defective capacitors are installed. Conformal coating is applied after repairs to provide protection against environmental factors.
Testing & Quality
After repairs, the product undergoes Level 1 component testing to confirm the replacement of faulty parts. This testing ensures that each component functions correctly, although it does not include full power-up or burn-in tests. This approach provides component-level verification of basic operational integrity.
Service and repair your broken Eaton part
We can repair your Eaton model 1A96695R01 in our facility. Let our skilled technicians get your Eaton back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
