CSL Part Number: 1264

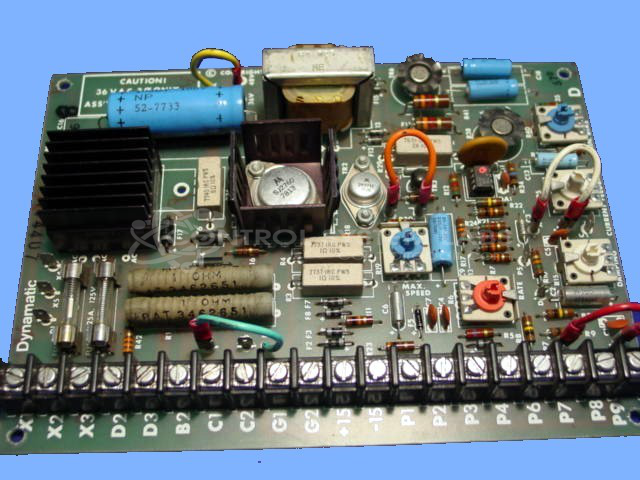

Product Overview: The Eaton Dynamatic 15-500-2 is a two-board assembly consisting of a torque limiter control board and a three-phase bridge rectifier used in DC motor drive systems. It regulates motor torque by controlling armature current based on an external reference signal. Commonly found in tension control applications such as paper processing and web handling equipment, it converts three-phase AC input to DC for motor field excitation and includes feedback circuitry for closed-loop torque regulation. The control board uses transistor-based output stages and analog signal processing to maintain precise torque limits.
Category: Motor Controls
Manufacturer: Eaton Dynamatic
Manufacturer Synonyms: Drive Source International, DSI
Manufacturer Part Number: 15-500-2
Also Known As(AKA): EATON
Common Failures
Common issues reported include the board outputting full torque or losing tension. These problems are often related to components such as transistors and diodes.
Repair Approach
The repair process typically involves replacing defective components such as transistors, zener diodes, and resistors. Capacitor replacement may also be performed. In some cases, adding missing jumpers has corrected performance issues. Diagnosis involves using testing equipment to isolate faulty parts.
Testing & Quality
After repairs, devices undergo diagnostic testing and cleaning. Units are subjected to quality checks, including burn-in tests with motors to verify functionality. Each unit must pass testing procedures before final approval.
Service and repair your broken Eaton Dynamatic part
We can repair your Eaton Dynamatic model 15-500-2 in our facility. Let our skilled technicians get your Eaton Dynamatic back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
