CSL Part Number: 1265

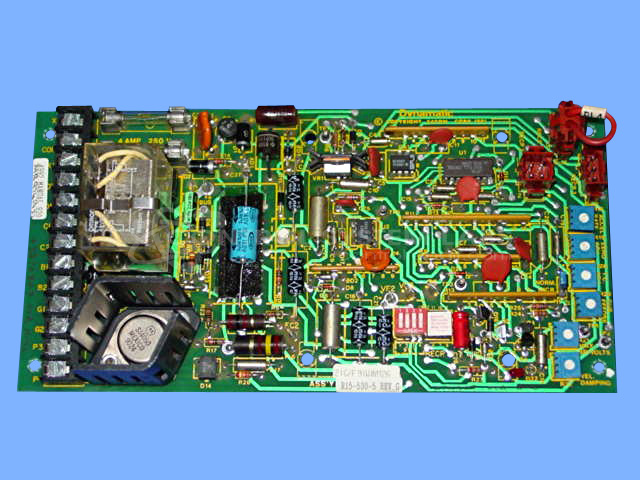

Product Overview: The Eaton Dynamatic 4000 Control Board 3.5 Amp (model 15-530-5) is a DC motor speed control board from the 4000 Series. It regulates motor speed using tachometer feedback and provides closed-loop control for industrial DC drive applications. The board operates from AC input power, features adjustable parameters via DIP switches, and includes protection circuitry with fuses and TVS diodes. It is commonly used in paper processing equipment and other industrial machinery requiring precise DC motor control.
Category: Motor Controls
Manufacturer: Eaton Dynamatic
Manufacturer Synonyms: Drive Source International, DSI
Manufacturer Part Number: 15-530-5
Common Failures
Common issues include blown transistors, fuses, and TVS diodes. Incorrect components such as capacitors and relays have also been identified and replaced to meet required specifications.
Repair Approach
The repair process involves diagnosing defective components through thorough testing and replacing them with appropriate parts. Specific measures include replacing blown fuses with correct ones and installing correct types of capacitors and relays where discrepancies are found.
Testing & Quality
Post-repair, units undergo testing to verify functionality. This includes diagnosing power supply voltages and using DC motors to test operational performance. The repaired units are subjected to burn-in tests to evaluate operation under load conditions. Testing procedures are determined based on the nature of the repair and available equipment.
Service and repair your broken Eaton Dynamatic part
We can repair your Eaton Dynamatic model 15-530-5 in our facility. Let our skilled technicians get your Eaton Dynamatic back in operation quickly.
