Repair
Repair Price: $ 588.00
Purchase
CSL Part Number: 6188

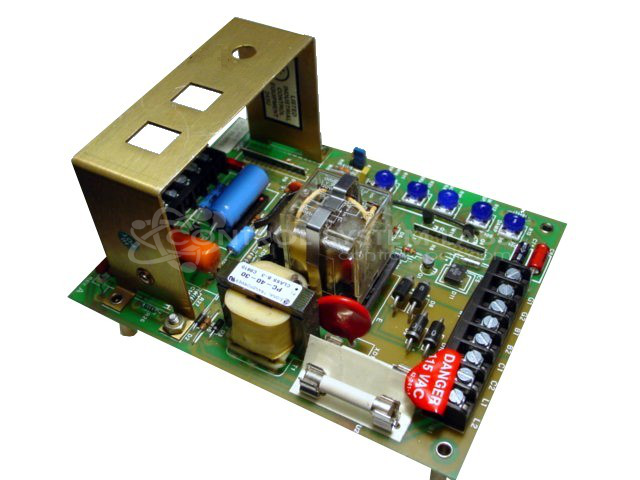

Product Overview: The Eaton Dynamatic 3000 Control Board is a motor speed control used in industrial drive systems, commonly found in paper processing equipment. It regulates AC or DC motor speed through adjustable potentiometer inputs and provides brake control functionality. The board operates with 90-120VAC input and includes trimmable parameters for speed regulation, making it suitable for applications requiring variable speed control with braking capability.
Category: Motor Controls
Manufacturer: Eaton Dynamatic
Manufacturer Synonyms: Drive Source International, DSI
Manufacturer Part Number: 15-588-2
Common Failures
Typical issues reported include speed fluctuations during operation and component-level failures such as electrolytic capacitors and solder joints. Some units have exhibited high equivalent series resistance (ESR) in capacitors or compromised solder connections affecting the speed potentiometer circuit.
Repair Approach
Repairs may involve replacing failed capacitors and addressing connection issues such as loose fuse holders. Preventative measures like adding relay retention hardware are undertaken when appropriate. Cleaning and conformal coating application are part of the standard repair process where applicable.
Testing & Quality
Repaired units undergo functional testing to verify operation. This includes testing with a motor load to evaluate speed stability and confirming proper operation of adjustment controls and brake functions. Units are tested to CSL standards before return to the customer.
Service and repair your broken Eaton Dynamatic part
We can repair your Eaton Dynamatic model 15-588-2 in our facility. Let our skilled technicians get your Eaton Dynamatic back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
