Repair
Repair Price: $ 480.00
Purchase
CSL Part Number: 82925

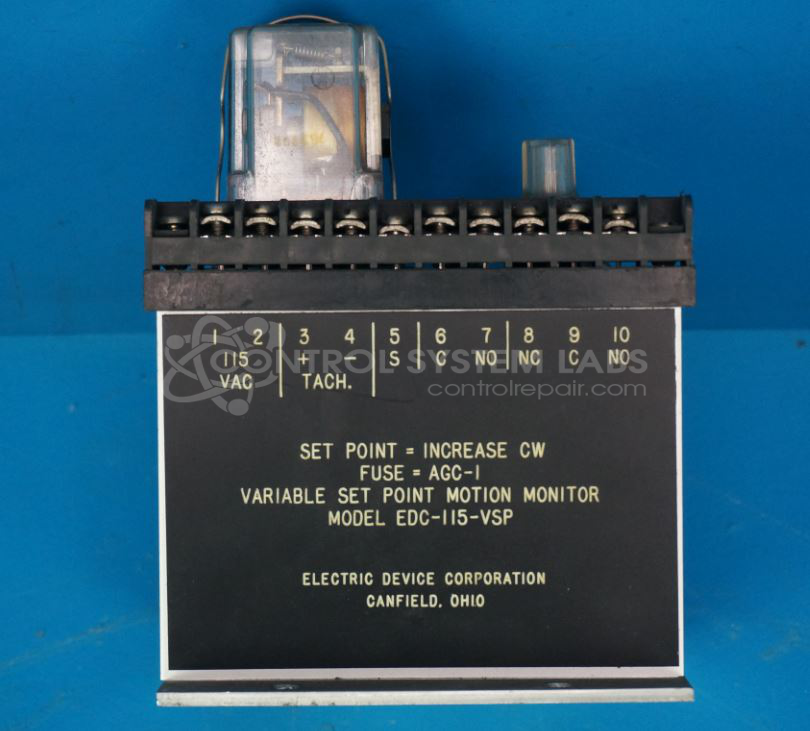

Product Overview: The EDC-115-VSP Brake Monitor Module is a control assembly manufactured by Electric Device Corporation that monitors brake status in industrial press applications. It uses a tachometer input signal (0-1 volt range) with an adjustable potentiometer to trigger a DPDT relay at approximately 0.5 volts, providing both visual indication via a red LED and relay contact closure to signal proper brake operation. The module operates on 115 VAC input power and is commonly used to ensure safe press cycling by verifying brake engagement before allowing the next cycle to begin.
Category: Control Assembly
Manufacturer: Electric Device Corporation
Manufacturer Part Number: EDC-115-VSP
Common Failures
Common issues reported include the red indicator light not activating or appearing dim, and the unit not completing its cycle as expected. In some cases, the relay may respond intermittently when physically manipulated.
Repair Approach
Our repair process typically includes visual inspection, cleaning, and re-soldering connections as needed. We examine solder joints, pot wires, and socket pins for integrity. The relay is a common component requiring service or replacement during evaluation.
Testing & Quality
Repaired units are tested to confirm functionality. Testing may include checking relay contacts, applying appropriate voltage inputs, and verifying circuit board settings. Units are subject to a burn-in test under expected operating conditions before return.
Service and repair your broken Electric Device Corporation part
We can repair your Electric Device Corporation model EDC-115-VSP in our facility. Let our skilled technicians get your Electric Device Corporation back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
