Repair
Repair Price: $ 1,194.00
Purchase
CSL Part Number: 82924

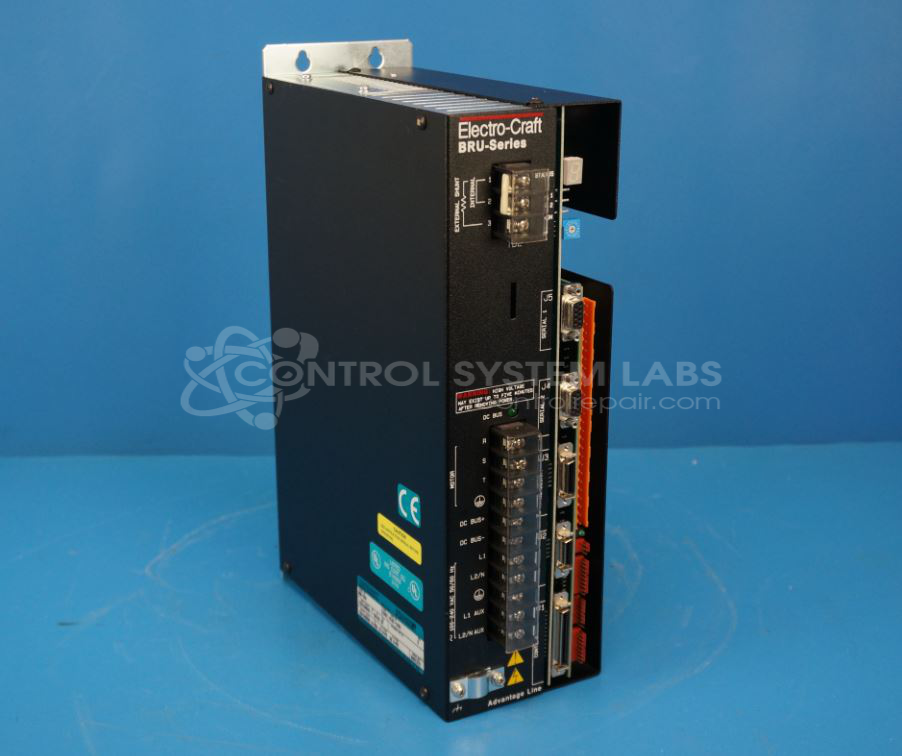

Product Overview: The Electro-Craft DDM-030 BRU Drive is a servo motor amplifier used to control DC servo motors in industrial motion applications. It accepts analog command signals and provides precise speed and position control. Commonly found in paper processing equipment, particularly servo roll feed systems like the SRF-5 and SRF-32, it features battery-backed RAM for parameter storage and RS-232 communication capability. The drive operates on single-phase AC input power with auxiliary power terminals and outputs three-phase motor control signals.
Category: Motor Controls
Manufacturer: Electro-Craft
Manufacturer Synonyms: ElectroCraft,Electro Craft
Alternate Manufacturer Names: Allen Bradley, Rockwell
Manufacturer Part Number: DDM-030 [9101-1396]
Other Synonyms: Allen Bradley, Rockwell
This drive is used in many applications, including servo rool Feeds like the SRF-5 and SRF-32
Common Failures
Common issues reported with this product include Servo AMP Fault errors, such as E-24 during jogging or running operations, and IPM faults like E05, which may be related to over temperature, over current, or short circuit conditions.
Repair Approach
CSL's repair process may involve component replacement and circuit board evaluation. When a unit is received, our technicians perform inspection and testing to identify failed components. Typical repair work may include replacing electrolytic capacitors, repairing circuit board traces, or replacing components such as battery-backed RAM and IPM units, depending on evaluation findings.
Testing & Quality Assurance
Following repair work, the unit undergoes diagnostic testing to verify functionality. This includes power-on tests and operational checks. Testing procedures are designed to confirm that the unit powers on correctly and operates without errors before return to the customer.
Repair your broken Electro-Craft part
We can repair your Electro-Craft model DDM-030 [9101-1396] .
Please note: our repair turnaround time may be longer than our standard lead times for this item.
Step 1 -
Click the green button above, "Repair Now," and add to your RMA.
Step 2 -
Print the RMA form that is emailed to you, and put it in a box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
You will be sent an authorization for repair via email. Your approval is needed before any work is started.
