Repair
Repair Price: $ 396.00
Purchase
CSL Part Number: 29642

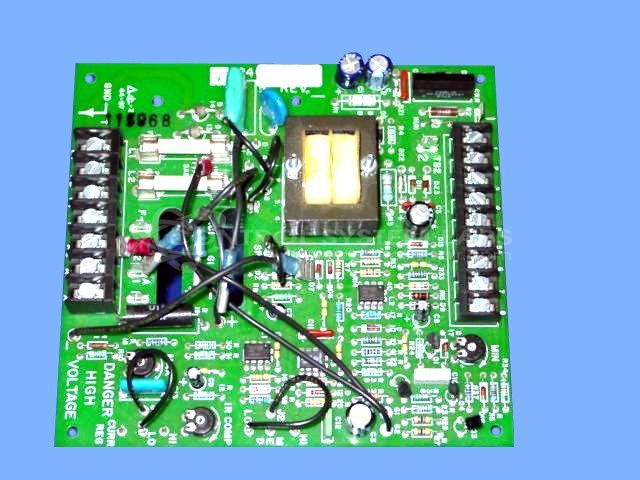

Product Overview: Panel-mounted DC drive control board that regulates speed and output for DC motors in industrial equipment. Supports selectable 115/230 VAC operation via transformer jumpers and includes a 5k speed potentiometer, relay-based control, and fused power inputs. Commonly used in paper processing and web-handling machinery.
Category: DC Motor Controls
Manufacturer: Emerson
Manufacturer Part Number: 2400-4005 REV.A
Series: Focus 1 DC Drive
Common Failures
Common issues reported with this unit include the DC motor stopping after a few minutes of running. Reported symptoms may include the unit not entering run mode or lacking output. Typical root causes identified during evaluation have included relay failures and solder connection issues.
Repair Approach
Our repair process may include replacing faulty relays and capacitors, reflowing solder joints, and addressing missing or disconnected components. In some cases, additional components such as diodes and transformers may be adjusted or replaced as needed to restore proper operation.
Testing & Quality
Once repairs are completed, units are tested to confirm functionality. Testing procedures may include running the board with a motor for extended periods and performing burn-in procedures in various operational modes to verify consistent performance.
Service and repair your broken Emerson part
We can repair your Emerson model 2400-4005 REV.A in our facility. Let our skilled technicians get your Emerson back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
