CSL Part Number: 87107

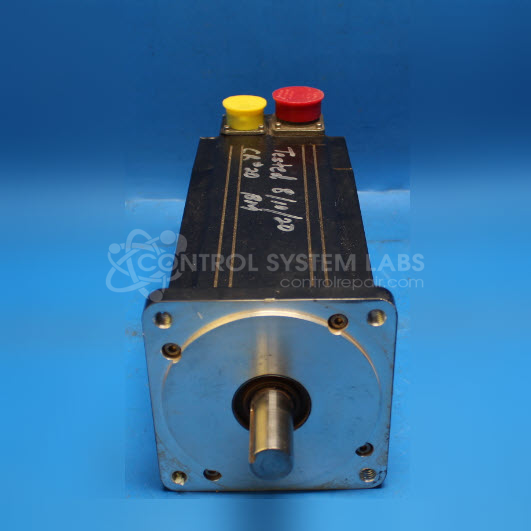

Product Overview: An AC servo motor rated 2.8 kW (3.75 HP), 15 A, 3000 RPM, equipped with a Tamagawa FA-Coder 2048 PPR encoder for closed-loop position and speed feedback. Used in automated motion control systems and paper industry machinery requiring precise positioning.
Category: Servo Motors
Manufacturer: Emerson
Alternate Manufacturer Names: NIDEC,CONTROL TECHNIQUES
Manufacturer Part Number: MGE-490-CONS-0000
Also Known As(AKA): 960130-23-A3
Other Synonyms: NIDEC,CONTROL TECHNIQUES
Common Failures
Some units have experienced intermittent issues with the servo motor not returning to its home position consistently. The root cause can vary and requires evaluation to determine.
Repair Approach
The repair process included inspection of the encoder assembly. In this case, dust accumulation on the encoder glass was identified as a contributing factor to inaccurate pulse counts. The encoder was cleaned and reassembled to address the condition.
Testing & Quality
Post-repair testing confirmed proper pulse function. The unit was evaluated and found serviceable following the encoder servicing.
Repair your broken Emerson part
We can repair your Emerson model MGE-490-CONS-0000 .
Please note: our repair turnaround time may be longer than our standard lead times for this item.
Step 1 -
Click the green button above, "Repair Now," and add to your RMA.
Step 2 -
Print the RMA form that is emailed to you, and put it in a box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
You will be sent an authorization for repair via email. Your approval is needed before any work is started.
