Repair
Repair Price: $ 854.00
Purchase
CSL Part Number: 72067

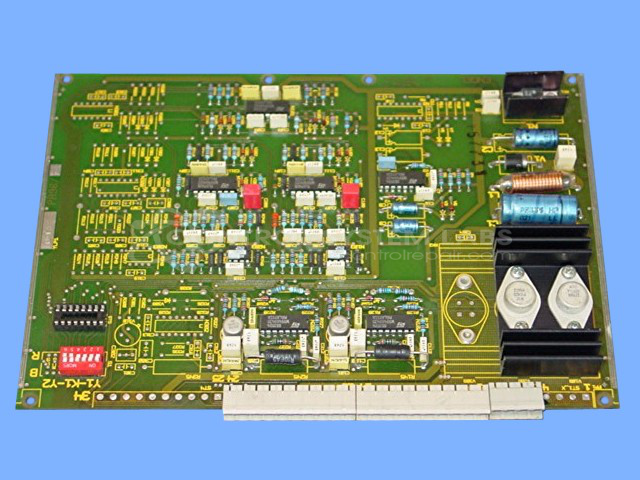

Product Overview: The Engel PA96/2A is a 2-channel proportional valve driver card used in industrial hydraulic control systems, commonly found in plastic injection molding machines and similar manufacturing equipment. It generates PWM-controlled output currents to drive proportional hydraulic valves based on analog input control signals. The card uses SG3524 PWM controller ICs and PIC600 transistor arrays in Sziklai configuration for power amplification. It features configurable DIP switch settings and operates on standard industrial power supplies including +5V reference, +15VDC, and -15VDC rails.
Category: Valve Driver / Amplifier Card
Manufacturer: Engel
Manufacturer Part Number: PA96/2A
Also Known As(AKA): .22036409 W-NR
Service and repair your broken Engel part
We can repair your Engel model PA96/2A in our facility. Let our skilled technicians get your Engel back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
