Repair Price: $ 2,244.00
Purchase
CSL Part Number: 106900

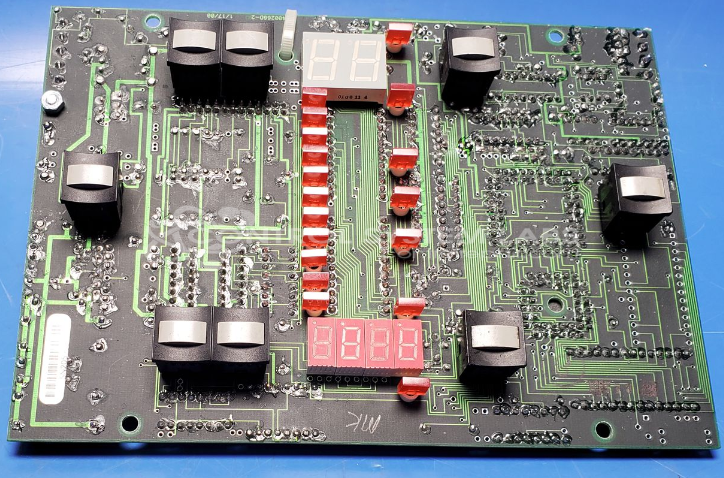

Product Overview: The Entron 600572-009CC is a microprocessor-based control board designed for seam welding applications. It regulates SCR contactor operation and monitors welding parameters through programmable settings stored in EEPROM memory. The board operates on 24VAC center-tapped input and generates internal 5VDC and -12VDC supply voltages. It features LED diagnostic error code display and multiple input/output connections for integration with seam welding equipment. This control is commonly found in industrial packaging and fabrication machinery requiring continuous or intermittent seam welding processes.
Category: Welders
Manufacturer: Entron
Manufacturer Part Number: 600572-009CC
Please include a detailed problem description
Common Failures
Several issues have been reported with this model, including error codes such as ERR 26, which may indicate a shorted SCR contactor, and ERR 32, which may point to memory corruption. These errors have been observed when specific inputs were connected or after certain operations were performed, such as erasing EEP content.
Repair Approach
During evaluation, our technicians reviewed power supply and input voltages. Testing involved connecting various inputs and observing changes in error states. Steps such as checking capacitors and performing component-level diagnostics were part of the evaluation process. The unit was determined to be Beyond Economic Repair due to the complexity of the issues identified.
Limited Repair
The Entron part number is only available as a limited repair at our facility. Repairs to this item may be limited due to several reasons:
- Availability of parts
- Less than 100% test ability due to required support equipment
To have us attempt a repair on your Entron part follow these steps:
Step 1 -
Click the Repair Now button above to add the part and complete the RMA form.
Step 2 -
Print the RMA form that is sent to your email, and put it in the box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
After we receive your item, we will perform an inspection and an authorization to repair will be sent for your approval. Work will begin after your authorization is received.
