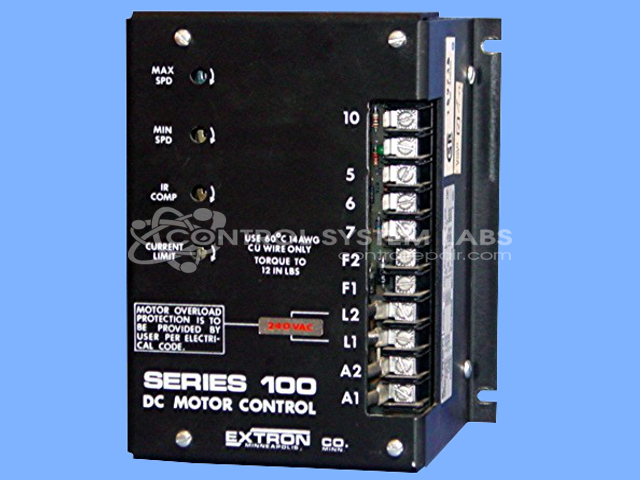

Extron 100-40 3 HP 230V DC Motro Control

Repair

Repair Price: $ 468.00

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/80802/image_1920?unique=094b912
  • Condition

Purchase Price: $ 0.00 $ 0.00 468.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 55362
Product Overview: A 3 HP, 230V DC motor control designed to regulate the speed and torque of shunt wound or permanent magnet DC motors. Features include adjustable minimum and maximum speed, IR compensation, and current limit. Commonly used in industrial equipment such as band saws and variable-speed machinery.
Category: DC Motor Controls
Manufacturer: Extron
Manufacturer Part Number: 100-40
Series: Series 100 DC Drive

Common Failures

Common issues reported include an output problem and a blown fuse at power-up. The output problem has been traced to an open resistor, while the blown fuse has been associated with shorted modules.

Repair Approach

The repair for the output problem typically involves replacing several components, including a resistor and modules. For the blown fuse, shorted modules are replaced and cold solder joints are reflowed to restore functionality.

Testing & Quality

Post-repair, units undergo testing to verify operation. Testing may include extended runtime checks to verify input and output functionality.

Service and repair your broken Extron part


We can repair your Extron model 100-40 in our facility. Let our skilled technicians get your Extron back in operation quickly.


Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.

Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.

Step 3 - Ship or mail the box to the address listed on the RMA.
