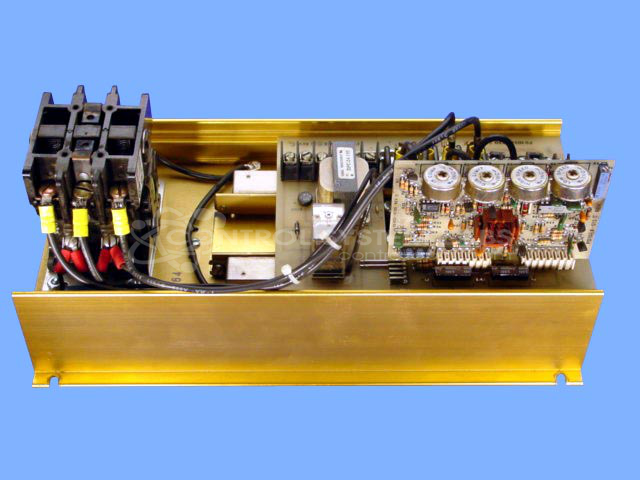

Extron 8210-01-0701 3HP Open Frame 240V DC Drive Assembly
Repair
Repair Price: $ 604.00
Purchase
CSL Part Number: 31901
Product Overview: An open-frame DC motor control drive assembly rated for 3 horsepower on 240V input. It regulates armature and field voltage to control the speed and torque of DC motors in industrial machinery, featuring relay-based switching and adjustable output.
Category: DC Motor Controls
Manufacturer: Extron
Manufacturer Part Number: 8210-01-0701
Common Failures
Common issues identified with this product include shorted fields, failed capacitors, relay coil malfunctions, and various other component failures. These problems often manifest as electrical malfunctions or component degradation.
Repair Approach
Repairs typically involve replacing faulty components such as capacitors, relay coils, and various connectors. In many cases, adjustments are made to restore proper function, including cleaning relay contacts and removing solder bridges. Preventive replacements may be performed to enhance reliability.
Testing & Quality Assurance
Post-repair testing involves voltage checks and operational tests under load conditions. Units are often run for several hours to ensure reliability, with adjustments made as necessary. These steps help verify that repairs have been completed before units are returned.
Service and repair your broken Extron part
We can repair your Extron model 8210-01-0701 in our facility. Let our skilled technicians get your Extron back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
