Repair
Repair Price: $ 444.00
Purchase
CSL Part Number: 55788

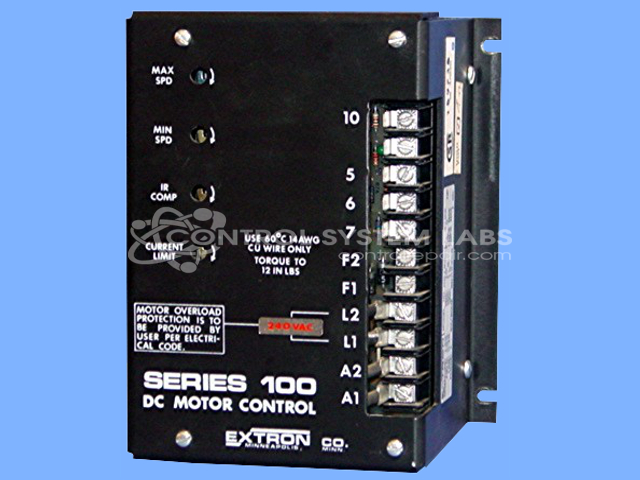

Product Overview: The Extron Series 100 Model M8102-11-0700 is a 3 HP DC motor control designed to regulate speed and torque in DC motor applications. It operates from a standard AC input and provides adjustable DC voltage output to power and control industrial DC motors up to 3 horsepower. Typical applications include conveyor systems, material handling equipment, packaging machinery, and other industrial processes requiring variable speed DC motor control. The drive features adjustable voltage control and is part of Extron's Series 100 platform, which offers multiple horsepower configurations for various motor sizes.
Category: DC Motor Controls
Manufacturer: Extron
Manufacturer Part Number: M8102-11-0700
Series: Series 100 DC Drive
Common Failures
Common issues reported include failure to function as expected. These issues are often related to capacitor failure or damage in the shunt area on the board.
Repair Approach
The typical repair process involves replacing faulty capacitors and rebuilding the affected shunt area on the board to restore functionality.
Testing & Quality
After repairs, the product undergoes testing, including a burn-in test using a motor to verify performance under specified operating conditions. The product is also subjected to comprehensive checks to confirm the repair.
Service and repair your broken Extron part
We can repair your Extron model M8102-11-0700 in our facility. Let our skilled technicians get your Extron back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
