CSL Part Number: 30610

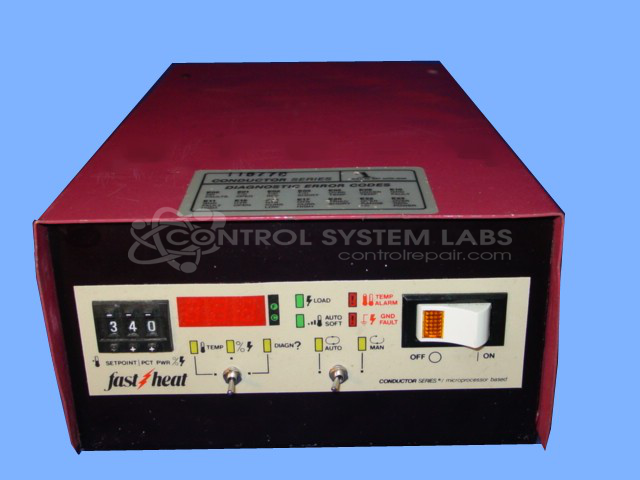

Product Overview: The Fast Heat Conductor Series is a microprocessor-based temperature controller rated for 15A loads with integrated alarm functionality. It accepts thermocouple inputs (commonly Type J) and provides on/off heater output control for industrial heating applications. The controller features digital temperature display, duty cycle indication, manual and automatic operating modes, and error code diagnostics. It includes temperature alarm indication and thermocouple error detection with automatic heater shutoff for safety. Commonly used in plastics processing, packaging equipment, and other applications requiring precise temperature control of heating elements.
Category: Temperature Control
Manufacturer: Fast Heat
Manufacturer Part Number: Conductor Series
Series: Conductor Series Temperature Controller
Power supplies are tested with a minimum 4-hour burn-in, under load.
Common Failures
Some of the common issues observed in this product include no power display and no temperature display. These issues are often traced back to defective capacitors or broken transformer primary windings.
Repair Approach
Repairs may involve replacing defective electrolytic capacitors and broken transformer components. Preventative maintenance may also include replacing various capacitors and switches, reattaching ground terminals, repairing transformer leads, and adding missing rubber feet. Special attention is given to modifying parts for proper fitting due to part availability challenges.
Testing & Quality
After repairs, the products undergo thorough testing procedures, including burn-in testing at 300°F. Calibration is verified across a range from 200°F to 700°F to ensure accuracy. Final testing ensures that T/C inputs, heater outputs, temperature displays, and alarms work correctly.
