CSL Part Number: 101633

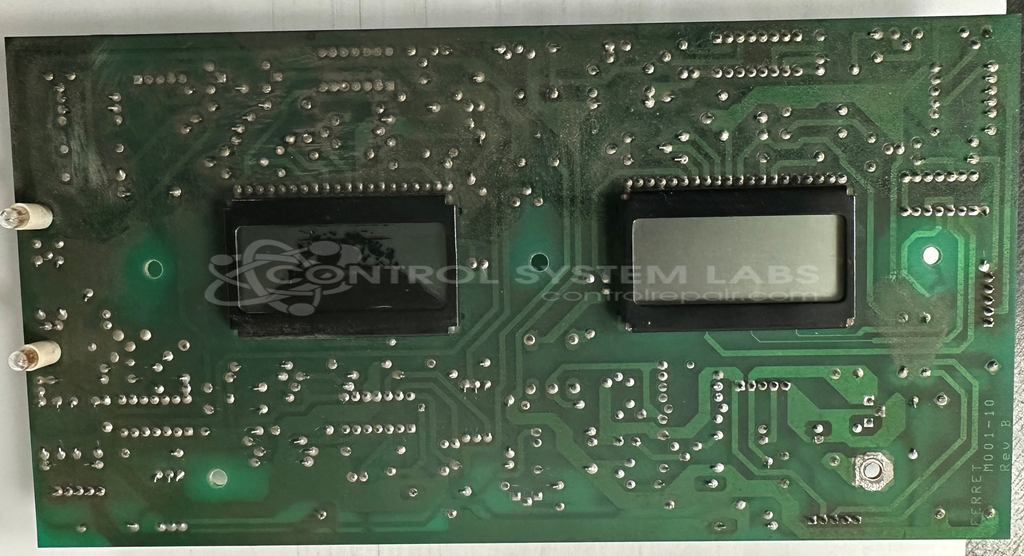

Product Overview: The Ferret M001-10 Charging System Analyzer Control Board is a diagnostic control board used in the Ferret 40 charging system analyzer. It monitors and displays electrical parameters when testing automotive or industrial charging systems and batteries. The board features dual LCD displays for voltage and amperage readouts, operates on 12VDC input, and generates regulated power supplies at 5V, -5V, and -8V. It includes indicator lamps and an audible buzzer for status feedback during testing operations.
Category: Control Board
Manufacturer: Ferret
Manufacturer Synonyms: GxT Incorporated
Manufacturer Part Number: M001-10
Common Failures
The primary issues reported include unreadable displays, blacked-out readouts, missing digits, and intermittent power-on behavior. These symptoms may be due to defective or damaged components such as displays and bulbs, as well as physical damage that can occur during use, previous repairs, or shipping.
Repair Approach
Repairs typically involve replacing defective LCD displays and bulbs. In some cases, preventative maintenance is performed by replacing electrolytic capacitors to support reliable operation. Insulating tape may be applied to prevent shorting issues caused by metal components that could compromise display pins.
Testing & Quality
Post-repair testing includes verification of the device's functionality, often conducted for extended periods to evaluate stability. Devices are tested to verify display visibility and operational accuracy using customer-supplied systems when possible. Our goal is to return units to serviceable condition based on the evaluated failure and repair performed.
Limited Repair
The Ferret part number is only available as a limited repair at our facility. Repairs to this item may be limited due to several reasons:
- Availability of parts
- Less than 100% test ability due to required support equipment
To have us attempt a repair on your Ferret part follow these steps:
Step 1 -
Click the Repair Now button above to add the part and complete the RMA form.
Step 2 -
Print the RMA form that is sent to your email, and put it in the box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
After we receive your item, we will perform an inspection and an authorization to repair will be sent for your approval. Work will begin after your authorization is received.
