Repair
Repair Price: $ 664.00
Purchase
CSL Part Number: 16169

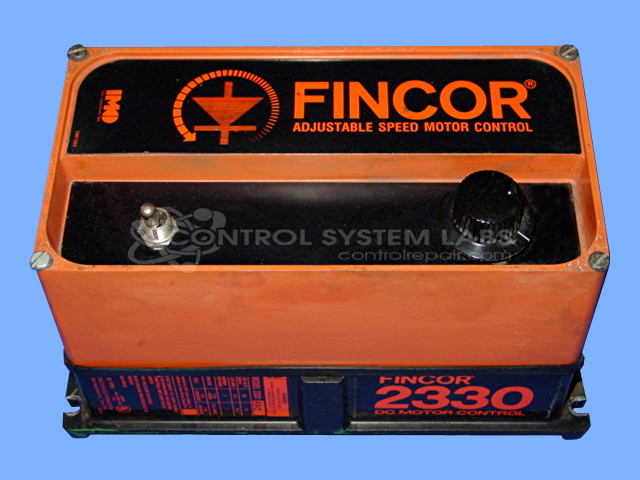

Product Overview: A regenerative DC motor speed control for permanent magnet and shunt-wound motors rated 1/6 to 2 HP. It regulates armature and field voltage to provide variable-speed operation with forward and reverse capability, delivering approximately 90V DC armature output. Commonly used in paper handling and industrial drive equipment.
Category: DC Motor Controls
Manufacturer: Fincor
Manufacturer Part Number: 2331AP0
Series: 2330 MKII DC Motor Controller
Common Failures
This product may experience issues with relay operation and directional control. Symptoms reported include failure to reverse motor direction, inconsistent directional response, and lack of voltage output to the motor in one direction. These issues can be related to relays, diodes, and module components on the forward/reverse board.
Repair Approach
The typical repair process may involve replacing faulty relays, diodes, SCRs, and hybrid modules when they are found to be defective. Additional repairs may include resoldering, replacing capacitors, and repairing open traces. Voltage and capacitor checks are also performed during evaluation.
Testing & Quality
Post-repair testing involves running the unit under load to verify operation. Tested units undergo cleaning and adjustments to confirm correct voltage output and functional control. Units are tested to verify proper operation before return to the customer.
Service and repair your broken Fincor part
We can repair your Fincor model 2331AP0 in our facility. Let our skilled technicians get your Fincor back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
