FMC 9D4433 M75 and M106 HP Transistor Switcher
Repair
Repair Price: $ 320.00
Purchase
CSL Part Number: 1424

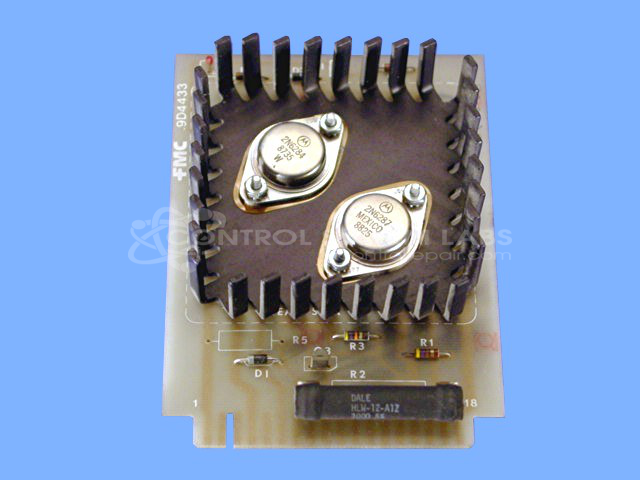

Product Overview: A high-power transistor switcher board used in industrial motion control systems, commonly found in paper machine drive applications. It switches power transistors (2N6284 Darlington devices) to control motor output, mounting power devices on a heat sink with insulators for thermal management.
Category: Motor Controls
Manufacturer: FMC
Manufacturer Part Number: 9D4433
Common Failures
Common issues reported with this product include shorted components within the control system, particularly a key transistor. Additional issues have been noted with edge traces and shorted outputs, which may be related to external factors such as load conditions or wiring.
Repair Approach
Repairs typically involve replacing failed components, resoldering connections, and cleaning the control area. Damaged traces are rebuilt as necessary. In some instances, insulators are added or replaced to improve durability.
Testing & Quality
After repairs, testing is conducted to verify proper functionality. This includes diagnostic tests and operating the system under typical conditions. Quality checks are performed to align with CSL procedural standards.
Service and repair your broken FMC part
We can repair your FMC model 9D4433 in our facility. Let our skilled technicians get your FMC back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
