Repair
Repair Price: $ 396.00
Purchase
CSL Part Number: 28046

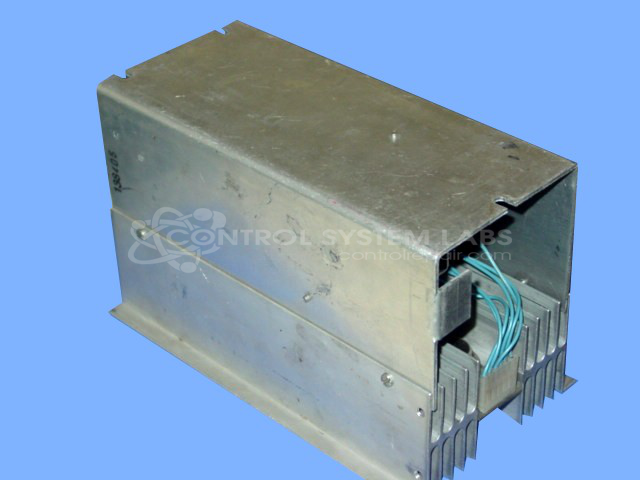

Product Overview: The M75 and M106 HP Voltage Regulator is a high-power regulated DC power supply used in FMC motion control systems for paper manufacturing equipment. It provides multiple regulated output voltages including 5VDC and 15VDC to power control boards and drive circuits. The regulator uses SCR-based control circuitry with linear voltage regulators and features an overvoltage protection sub-board. It employs TO-3 packaged power components mounted on heat-dissipating frames and connects via multi-pin headers for integration into larger motion control architectures.
Category: Power Supply
Manufacturer: FMC
Manufacturer Part Number: 9D5065
Power supplies are tested with a minimum 4-hour burn-in, under load.
Common Failures
Common issues include incorrect voltage output, damaged sockets, component failures, degraded wiring, and solder joint defects.
Repair Approach
Our repair process typically involves disassembly, cleaning, circuit board trace repair, and replacement of damaged components such as terminal blocks, resistors, connectors, transistors, and wiring as needed to restore proper functionality.
Testing & Quality
Following repair, we perform comprehensive testing to verify proper voltage levels and overall device performance before return.
Service and repair your broken FMC part
We can repair your FMC model 9D5065 in our facility. Let our skilled technicians get your FMC back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
