Repair Price: $ 275.00
Purchase
CSL Part Number: 74623

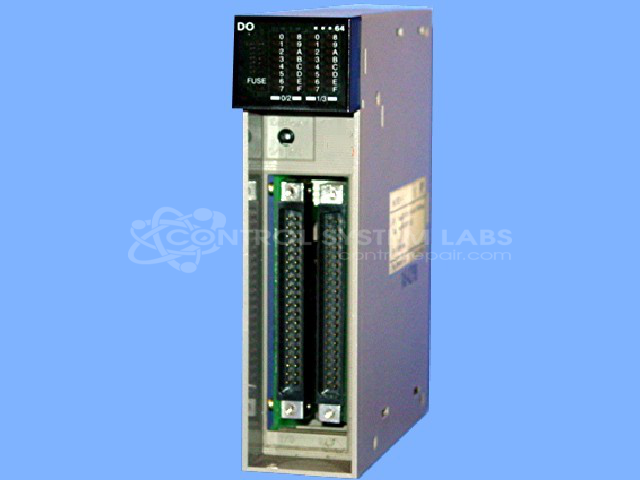

Product Overview: The Micrex F-70 NC1Y64T05P1-1ZE is a 64-point sinking DC output module for Fuji Electric's Micrex-F programmable logic controller system. It provides high-density discrete output control for industrial automation applications including paper manufacturing and process control equipment. The module uses MOSFET output devices to switch DC loads and features bank-organized outputs for easier troubleshooting. This model contains some proprietary components that are now obsolete, which may limit serviceability.
Category: PLC
Manufacturer: Fuji Electric
Manufacturer Synonyms: Fuji

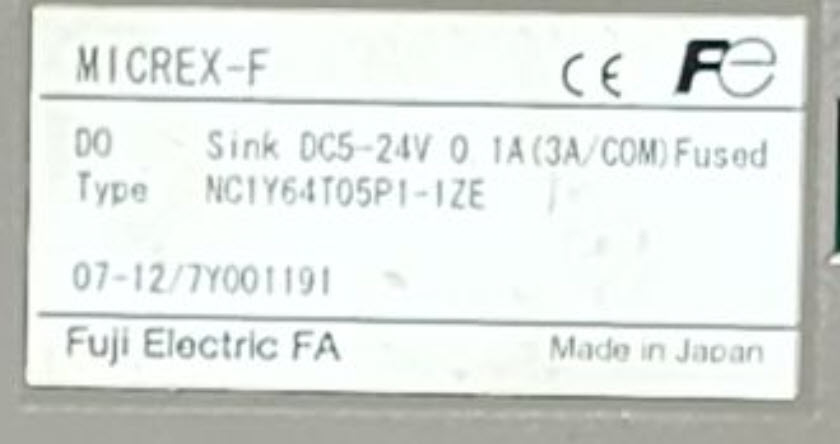

Manufacturer Part Number: NC1Y64T05P1-1ZE
Common Failures
This product may experience issues with output circuits. Problems can include defective output components such as output FETs. Initial evaluation can confirm whether output-related failures are present.
Repair Approach
Repairs may involve replacing defective components. When original components are obsolete, alternative parts may be used where appropriate. Trace repairs and component modifications are evaluated on a case-by-case basis to support successful repair.
Testing & Quality
Testing includes component-level analysis and verification of reported failures where possible. Due to the proprietary nature of some components and system-level dependencies, testing is conducted at the module level. Comprehensive system-level testing may not be available without the complete equipment.
Limited Repair
The Fuji Electric part number is only available as a limited repair at our facility. Repairs to this item may be limited due to several reasons:
- Availability of parts
- Less than 100% test ability due to required support equipment
To have us attempt a repair on your Fuji Electric part follow these steps:
Step 1 -
Click the Repair Now button above to add the part and complete the RMA form.
Step 2 -
Print the RMA form that is sent to your email, and put it in the box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
After we receive your item, we will perform an inspection and an authorization to repair will be sent for your approval. Work will begin after your authorization is received.
