Home >  Gammaflux GB-102-B TTC-2100 3A/4 Zone Output Module

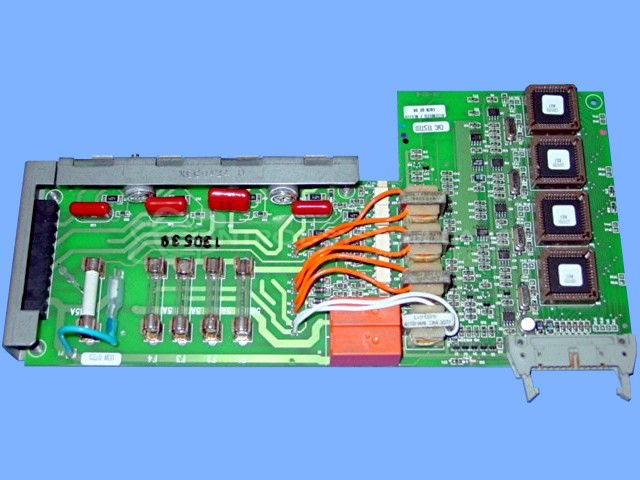

Gammaflux GB-102-B TTC-2100 3A/4 Zone Output Module

Repair

Repair Price: $ 820.00

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/52946/image_1920?unique=cb5223b
  • Condition

Purchase Price: $ 0.00 $ 0.00 820.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 34244
Product Overview: A four-zone output module for hot runner temperature control systems used in plastic injection molding. It drives heater zones at up to 3A per zone using triac outputs with optocoupler isolation, fused protection, and current sensing for heater monitoring and fault detection.
Category: Temperature Control
Manufacturer: Gammaflux
Manufacturer Part Number: GB-102-B
Series: TTC Temperature Control
Also Known As(AKA): YGB602C02 P/N

Common Failures

The primary issues reported include malfunctions in different zones, particularly "Zone 2" frequently being inoperative, open circuits, and blown fuses. Customers also reported problems such as no output and incorrect readings from the device. These symptoms often lead to verification of issues like faulty solder joints and damaged components.

Repair Approach

Repairs involved replacing various components such as triacs, resistors, microchips, fuses, and edge connectors. For example, instances of burnt components were resolved by replacing the damaged parts and verifying the functionality across zones. Additionally, problems such as open heaters or missing current displays were addressed by replacing specific resistors and microcontrollers.

Testing & Quality

Post-repair, units were thoroughly tested to ensure proper operation. This included running devices overnight or over several days to verify reliability under load. Each repair situation required a tailored testing approach based on the initial complaint and observed issues, ensuring the device met operational standards before return.

Service and repair your broken Gammaflux part


We can repair your Gammaflux model GB-102-B in our facility. Let our skilled technicians get your Gammaflux back in operation quickly.


Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.

Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.

Step 3 - Ship or mail the box to the address listed on the RMA.
