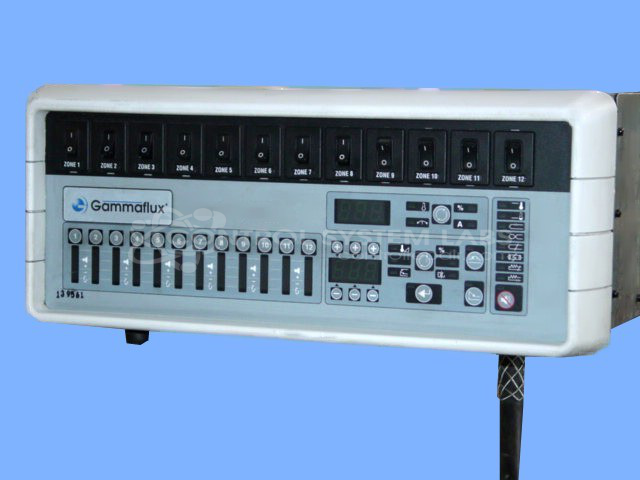

Gammaflux GLC21-G050D-12 GLC21 12 Zone Hot Runner
Repair
Repair Price: $ 3,496.00
Purchase
CSL Part Number: 47461
Product Overview: A modular 12-zone hot runner temperature control system used in plastic injection molding to regulate heater output across multiple zones. Supports J thermocouple sensing with per-zone calibration, DC-powered control electronics, and individual zone output boards for precise melt temperature management.
Category: Temperature Control
Manufacturer: Gammaflux
Manufacturer Part Number: GLC21-G050D-12
Series: GLC 2k Temperature Controller
MODULAR HOT RUNNER TEMPERATURE CONTROL SYSTEMS
Common Failures
Common issues with this product include the display lighting up but not reading values and a lack of temperature display. This is often traced back to control problems, particularly a lack of heater output on any zone.
Repair Approach
Repairs typically involve disassembling the unit to access and replace the main control board. Testing is then conducted to verify DC supplies and calibrate each zone across different temperatures. Operations of all zones are carefully checked to ensure proper functionality before reassembly.
Testing & Quality Assurance
Post-repair, extensive testing includes verifying DC supplies and conducting calibration checks for all zones at 100, 600, and 1000 degrees Fahrenheit using J thermocouples. Fans and overall operations are also verified.
Service and repair your broken Gammaflux part
We can repair your Gammaflux model GLC21-G050D-12 in our facility. Let our skilled technicians get your Gammaflux back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
