Repair Price: $ 708.00
Purchase
CSL Part Number: 58698

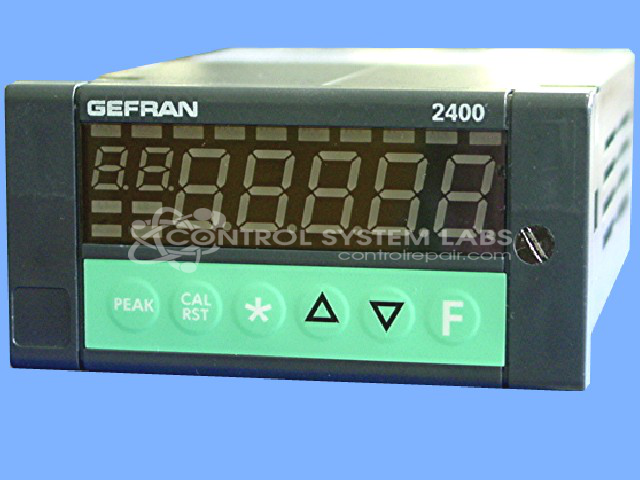

Product Overview: The Gefran 2400 is a 1/8 DIN horizontal case size indicator and alarm unit designed for process monitoring and control applications. It features multi-input capability, accepting various signal types including thermocouples, RTDs, voltage, and current inputs. The device provides configurable alarm outputs for process control and safety functions. Commonly used in industrial applications requiring compact panel-mounted display and alarm capability for temperature, pressure, or other process variables.
Category: Meters / Gauges / Readouts
Manufacturer: Gefran
Manufacturer Part Number: 2400-0-W-4D-0-1
Series: 2400 Indicator
Common Failures
Common issues include incorrect pressure readings and non-functional buttons. Another issue noted was the malfunction of the down set button due to a broken frame and defective solder joints. Additionally, no faults were detected in some units after thorough testing.
Repair Approach
Repairs often involved diagnostics to verify input settings and inspect components. For button-related issues, physical damage and solder joint repairs were addressed. Calibration checks and cycling through functions are standard procedures to evaluate unit operation.
Testing & Quality
Testing is conducted, including diagnostic evaluations and calibration verification. Units showed consistent tracking with thermocouple calibrators. Burn-in tests and co-checks are part of the quality assurance process to confirm repairs. Some units showed no detectable faults after testing.
Service and repair your broken Gefran part
We can repair your Gefran model 2400-0-W-4D-0-1 in our facility. Let our skilled technicians get your Gefran back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
