Repair
Repair Price: $ 386.00
Purchase
CSL Part Number: 23536

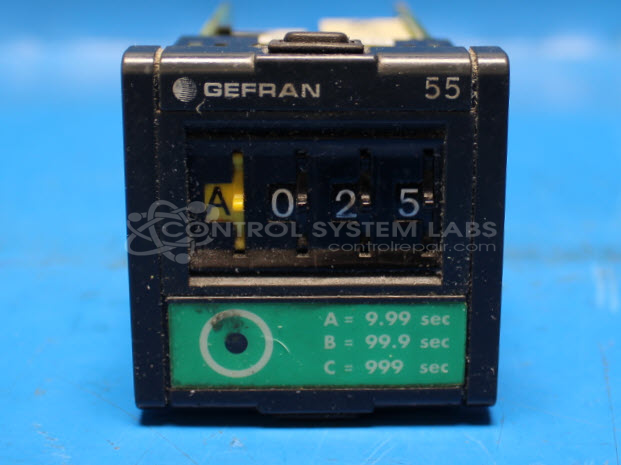

Product Overview: The Gefran 55-2-2 is a 1/16 DIN programmable timer with digital set point adjustment and LED indication. It operates on 220VAC and features one instantaneous relay output plus one time-delay relay output, typically 24VDC relay switching. This compact timer is commonly used in paper processing equipment and other industrial machinery requiring precise timing control. The unit has voltage-selectable operation via internal jumpers and includes a small transformer for internal 24VAC power supply. Configuration is performed through front-panel controls with visual feedback via LED display.
Category: Timers
Manufacturer: Gefran
Manufacturer Part Number: 55-2-2
Common Failures
Units may fail to power on due to issues arising from incorrect voltage settings. Common symptoms include the unit not powering up, damage to transformers and inductors when a unit configured for 110V is used on 220V, and damaged resistors. Other reported problems involve defective relays and position switches, as well as damaged electrolytic capacitors.
Repair Approach
Repairs typically involve replacing defective inductors, transformers, relays, and resistors. Incorrect voltage settings are corrected by adjusting jumpers to 220V, with units relabeled accordingly. Preventative replacement of electrolytic capacitors often accompanies these repairs. When switches are unavailable for replacement, alternative solutions may be evaluated to restore basic functionality.
Testing & Quality
Post-repair testing includes powering on the units to verify operation, along with load tests as appropriate. Units are checked for correct jumper settings to ensure they meet the operational standards required for 220VAC configurations. Repaired units are evaluated through various levels of testing to confirm restored functionality.
Service and repair your broken Gefran part
We can repair your Gefran model 55-2-2 in our facility. Let our skilled technicians get your Gefran back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
