Repair
Repair Price: $ 384.00
Purchase
CSL Part Number: 75660

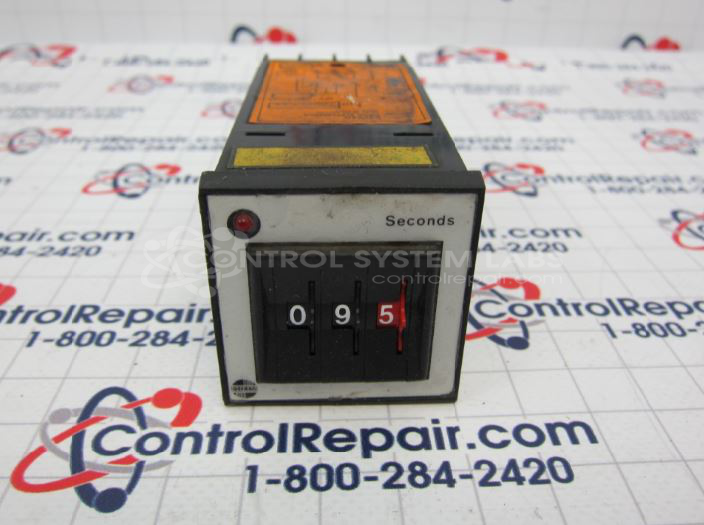

Product Overview: The Gefran TPDG1M is a 1/16 DIN panel-mount timer with digital thumbwheel setting and mechanical display. It operates on 220VAC input and provides relay outputs for time-delay control applications. Common in paper processing and industrial automation, it allows operators to set precise timing intervals via front-panel thumbwheels. The compact 1/16 DIN form factor enables installation in tight control panel spaces where sequential timing or delay functions are required.
Category: Timers
Manufacturer: Gefran
Manufacturer Part Number: TPDG1M
Series: Timer 1/16 DIN
Please handle with care / housing parts are not available.
Common Failures
Common issues observed with this product include defective components such as resistors and capacitors. These components may fail due to age or operational stress over time.
Repair Approach
The repair process typically involves replacing defective components as identified during evaluation. The procedure includes diagnostic testing to identify issues, followed by cleaning and maintaining electronic contacts such as terminals and tabs.
Testing & Quality
Diagnostic testing is performed to verify functionality after repair. This includes confirming component operation and proper timing of outputs. Each item is reviewed for quality assurance before return.
Service and repair your broken Gefran part
We can repair your Gefran model TPDG1M in our facility. Let our skilled technicians get your Gefran back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
