Repair
Repair Price: $ 384.00
Purchase
CSL Part Number: 33431

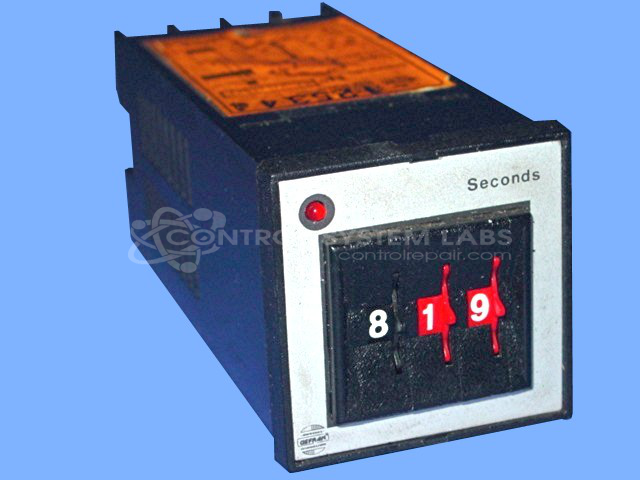

Product Overview: The Gefran TPDZA1M is a 1/16 DIN panel-mount timer with LED display and thumbwheel setpoint adjustment. It controls timing functions in industrial machinery through a relay output, typically operating on 24VDC logic with 220VAC relay switching capability. The thumbwheel interface allows manual time setting in increments, with the CD4541BE programmable timer IC providing the core timing function. Common applications include process equipment timing control where operator-adjustable delays or cycle times are needed. The compact 1/16 DIN form factor suits space-limited control panels in manufacturing and automation systems.
Category: Timers
Manufacturer: Gefran
Manufacturer Part Number: TPDZA1M
Series: Timer 1/16 DIN
Please handle with care / housing parts are not available.
Common Failures
Common issues with this product include timing errors, power loss, and relay contact failures. Timing errors often stem from defective components within the control circuitry, while power loss can result from failed capacitors and other discrete components. Relay contact failures may cause intermittent operation or loss of function.
Repair Approach
The repair process generally involves diagnostic testing to identify and replace defective components. Common replacements include electrolytic and tantalum capacitors, relays, diodes, and integrated circuits. Circuit board trace repairs are sometimes necessary to restore functionality. Preventive maintenance may include replacing electrolytic capacitors to improve reliability.
Testing & Quality
Repaired units undergo testing, including burn-in tests with load and functionality testing to verify operation. The units are verified to perform timing based on thumbwheel input and to ensure that the relay energizes properly. Any units failing to meet these standards are subjected to further diagnosis or marked Beyond Economic Repair if necessary.
Service and repair your broken Gefran part
We can repair your Gefran model TPDZA1M in our facility. Let our skilled technicians get your Gefran back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
