Repair
Repair Price: $ 684.00
Purchase
CSL Part Number: 104513

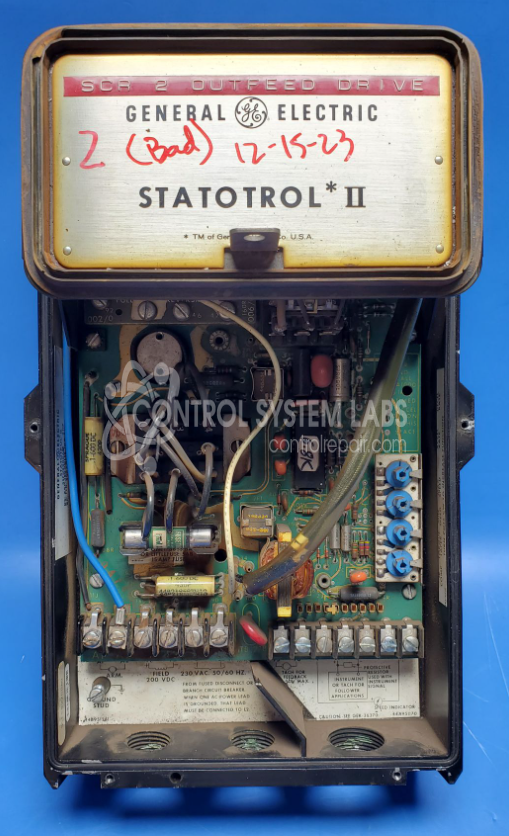

Product Overview: The General Electric Statotrol II 3SFWB2200A2 is a 230V DC motor drive rated for 2 horsepower applications. Part of the 3SFW series, it provides bi-directional speed control for DC motors in industrial environments. This drive is commonly used in steel manufacturing and material handling systems where precise motor control is required for equipment such as conveyor rollers and positioning systems. The unit features relay-based direction control and operates from single-phase or three-phase AC input power converted to regulated DC output for motor operation.
Category: DC Motor Controls
Manufacturer: General Electric
Manufacturer Synonyms: GE
Manufacturer Part Number: 3SFWB2200A2
Series: Statotrol II DC Drive
Also Known As(AKA): 3SRC2101A2
Common Failures
This product has been observed to experience intermittent functionality issues, specifically in the operation of a DC motor drive, which may lead to delays or non-movement of connected rollers. In some cases, components such as resistors within the relay circuit have been found to be out of tolerance during evaluation.
Repair Approach
The repair process typically involves thorough cleaning to remove contaminants from the circuit board, which can affect connections and component performance. Replacement of faulty components and preventive replacement of capacitors may be performed as part of the repair to support reliability.
Testing & Quality
After repairs are completed, units undergo testing, which may include a burn-in test with a motor to simulate operational conditions. Testing confirms the unit's performance in both forward and reverse operations before the unit is returned.
Service and repair your broken General Electric part
We can repair your General Electric model 3SFWB2200A2 in our facility. Let our skilled technicians get your General Electric back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
