CSL Part Number: 88097

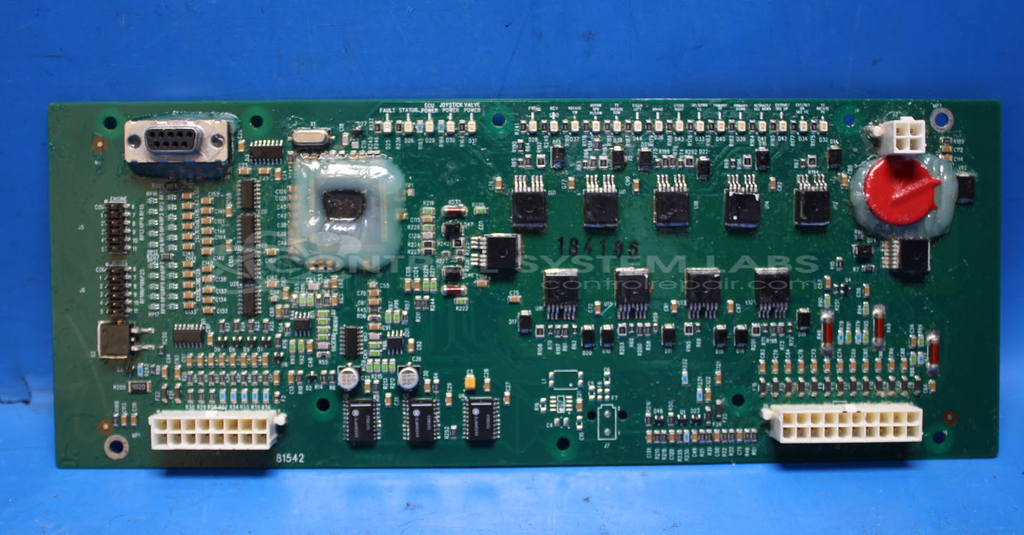

Product Overview: The Genie 81542 ECU Joystick Valve Control Board is an electronic controller used in Genie aerial work platforms including S-series and Z-series boom lifts. It interfaces between operator joystick inputs and hydraulic valve control, managing functions such as boom movement and drive systems. The board operates on 6VDC and includes diagnostic LEDs for ECU power, joystick power, fault status, and system status monitoring. Common applications include models S-40, S-45, S-60, and Z-45/25.
Category: Joystick / Controller
Manufacturer: Genie
Manufacturer Part Number: 81542
Common Failures
Several units experienced issues related to their capacitors, most frequently the 10uF electrolytic capacitors. The symptoms included drive function failure, joystick malfunction, and boards not sending power correctly. Corrosion and broken tabs were also noted issues in certain instances.
Repair Approach
Repairs often involved replacing defective electrolytic capacitors, which were identified as having high equivalent series resistance (ESR). In various cases, corrosion on the board was cleaned, and preventive maintenance was performed. Some repairs required the application and removal of conformal coating.
Testing & Quality
Repaired units underwent diagnostic testing before and after component replacement. Units generally passed Level 1 and Level 2 testing phases, ensuring that power and status indicators functioned correctly. However, due to the lack of a complete wiring diagram, complete machine-level system testing cannot be performed at CSL. We recommend that customers conduct final system verification once the repaired unit is reinstalled in their equipment.
Repair your broken Genie part
We can repair your Genie model 81542 .
Please note: our repair turnaround time may be longer than our standard lead times for this item.
