Repair
Repair Price: $ 1,312.00
Purchase
CSL Part Number: 70843

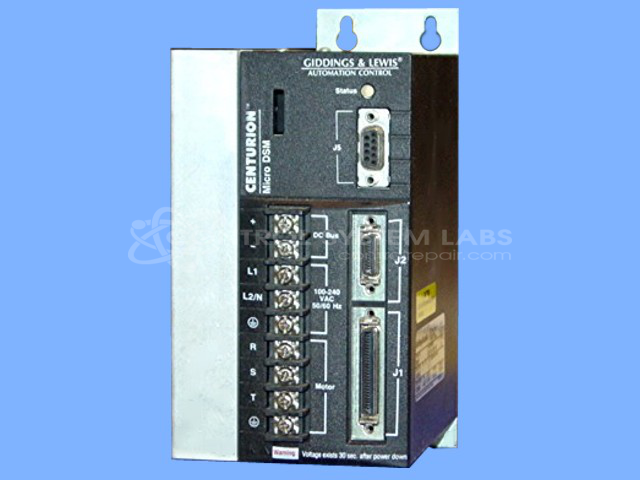

Product Overview: The Centurion Micro 5Amp DSM Drive (DSM015) is a compact servo amplifier manufactured by Giddings & Lewis for precise motion control applications. It delivers 5 amps continuous output to drive servo motors in CNC machine tools and machining centers, commonly controlling individual axes such as Z-axis positioning. The drive features programmable parameters for tuning motor performance, digital I/O for machine integration, and thermal protection circuitry. It typically connects via D-sub connectors and operates from a DC bus voltage supply with onboard electrolytic filtering capacitors.
Category: Servo Controls
Manufacturer: Giddings & Lewis
Manufacturer Synonyms: Fives, G & L, GL
Manufacturer Part Number: DSM015
Also Known As(AKA): 401-56452-00 P/N
This drive is obsolete. No drop in replacements. Must have repaired.
Common Failures
Frequently reported issues include Z-axis errors at higher speeds, which manifest as a blinking yellow light and require a full reboot. These problems are often attributed to faulty bus capacitors, with symptoms such as oily residue and value discrepancies identified during diagnostics.
Repair Approach
Our repair approach typically involves replacing worn electrolytic capacitors, especially bus capacitors, and performing diagnostic testing. In cases involving refurbished units, critical parameters from the original drive are copied and verified. Missing components, such as terminal screws, are also addressed during the repair process.
Testing & Quality Assurance
Before units are returned, they undergo burn-in testing with motors. The testing process includes loading and verifying both test and customer-specific programs. Any detected discrepancies in parameter files are resolved with customer consultation to ensure accuracy.
Service and repair your broken Giddings & Lewis part
We can repair your Giddings & Lewis model DSM015 in our facility. Let our skilled technicians get your Giddings & Lewis back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
