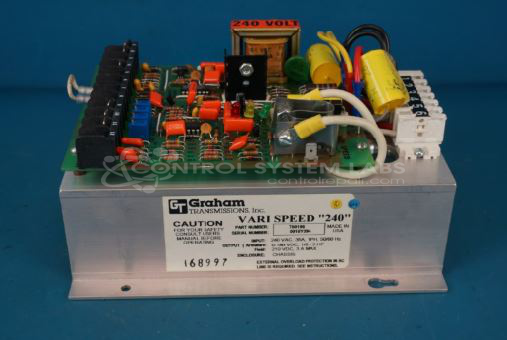

Graham Transmissions 700196 VARI SPEED 240 Motor Speed Control

Repair

Repair Price: $ 420.00

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/100212/image_1920?unique=8d76950
  • Condition

Purchase Price: $ 0.00 $ 0.00 420.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 79863
Product Overview: A DC motor speed control that regulates the speed of small to mid-size DC motors in industrial equipment. Accepts 240 VAC single-phase input at 35A, 50/60 Hz, delivering 0-180 VDC armature output for 1/8 to 5 HP motors with a 210 VDC field supply.
Category: DC Motor Controls
Manufacturer: Graham Transmissions
Manufacturer Part Number: 700196
Series: VariSpeed 240

Output 0-180 VDC,1/8-5 HP, Field 210 VDC

Common Failures

Units evaluated by CSL have shown issues with the speed control function not working correctly or being completely unresponsive. A common cause identified during evaluation is deteriorated solder joints on the connector.

Repair Approach

The repair process may involve resoldering affected connectors and replacing components as needed, such as capacitors. The unit is then cleaned and tested across its operating range to verify proper functionality.

Testing & Quality

Following repair, the unit undergoes testing, which includes a burn-in period. The unit is verified to function as expected before being returned to the customer.

Service and repair your broken Graham Transmissions part


We can repair your Graham Transmissions model 700196 in our facility. Let our skilled technicians get your Graham Transmissions back in operation quickly.


Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.

Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.

Step 3 - Ship or mail the box to the address listed on the RMA.
