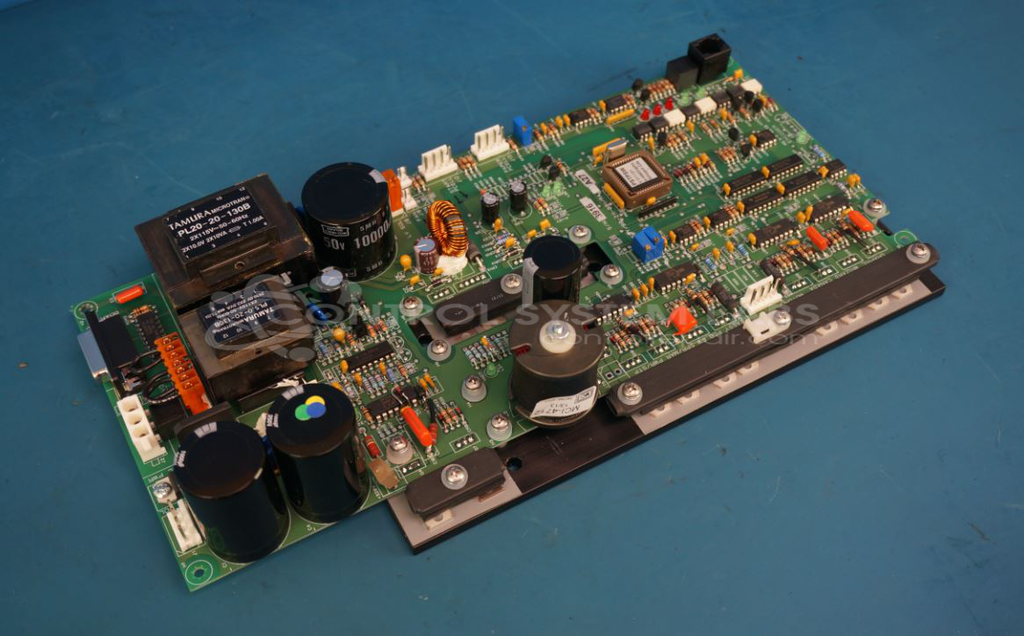

GRAPHIC WHIZARD 98-211-000/RA MSTP BOARD

Repair

Repair Price: $ 1,128.00

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/65952/image_1920?unique=c445828
  • Condition

Purchase Price: $ 0.00 $ 0.00 1128.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 82335
Product Overview: A microstepping control board used in paper finishing and converting equipment such as numbering, scoring, and perforating machines. It drives stepper motors, supplies power to the display board, and interfaces with photocell sensors for positioning and diagnostics.
Category: Control Board
Manufacturer: GRAPHIC WHIZARD
Manufacturer Part Number: 98-211-000/RA
Also Known As(AKA): 94-025-GW

Common Failures

Units received for evaluation have exhibited issues including lack of display power output, improper voltage output to stepper motors, and absence of photo cell voltage. Observed component-level failures have included broken component leads and missing jumpers.

Repair Approach

Repairs have addressed broken component leads and installation of required jumpers where applicable. Some units exhibited failures that were traced to external components or required evaluation beyond board-level repair capability.

Testing & Quality

Problems are verified through testing procedures developed for this unit type. When external components contribute to failure conditions, those findings are documented. Repairs are verified through established testing protocols to confirm board functionality before return.

Service and repair your broken GRAPHIC WHIZARD part


We can repair your GRAPHIC WHIZARD model 98-211-000/RA in our facility. Let our skilled technicians get your GRAPHIC WHIZARD back in operation quickly.


Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.

Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.

Step 3 - Ship or mail the box to the address listed on the RMA.
