Repair
Call for price
Purchase
CSL Part Number: 119531

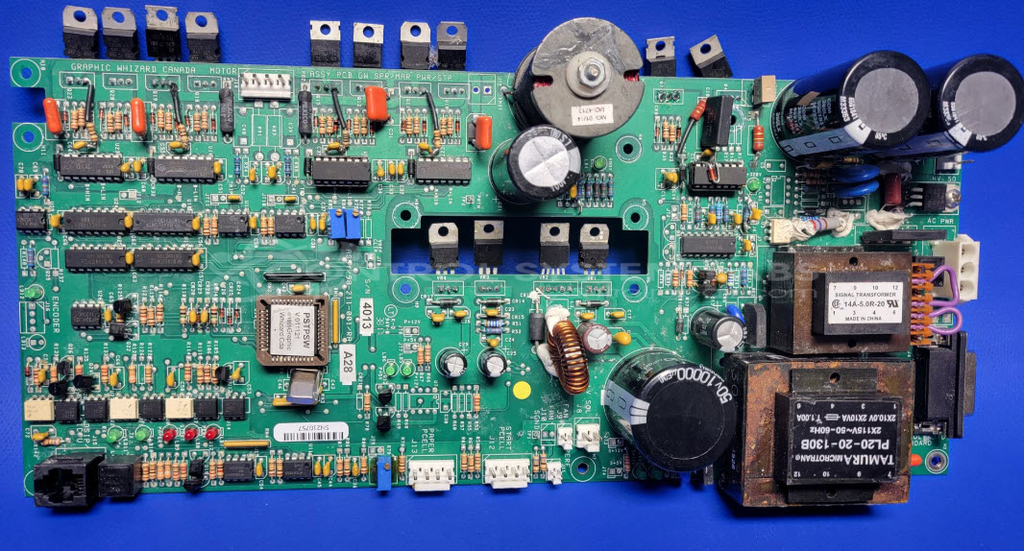

Product Overview: The MSTP Control Board is a motion control system designed for Graphic Whizard finishing equipment. It regulates motor voltage and manages communication interfaces for coordinated machine operation. The board features IGBT gate drivers, multiple voltage regulators providing 5V, 12V, and high-voltage DC outputs (typically 320V), and serial communication interfaces. It monitors motor parameters and generates fault codes when operating conditions fall outside acceptable ranges. Commonly used in paper finishing and bindery machinery, it controls motor speed and positioning for automated material handling processes.
Category: Machine Control
Manufacturer: GRAPHIC WHIZARD

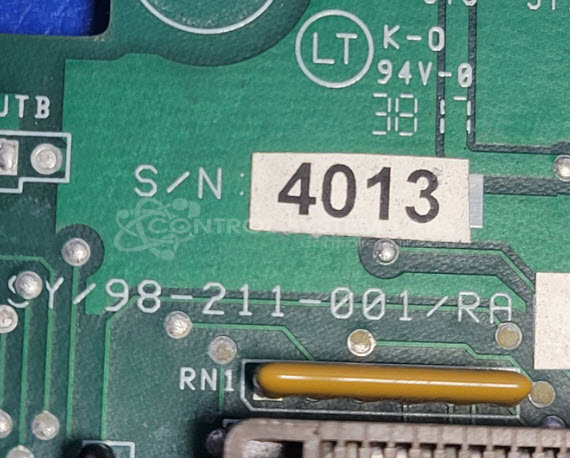

Manufacturer Part Number: 98-211-001/RA
Please include wiring diagrams when this is sent in. We prefer it not be removed from the heatsink if possible,
Limited Repair
The GRAPHIC WHIZARD part number is only available as a limited repair at our facility. Repairs to this item may be limited due to several reasons:
- Availability of parts
- Less than 100% test ability due to required support equipment
To have us attempt a repair on your GRAPHIC WHIZARD part follow these steps:
Step 1 -
Click the Repair Now button above to add the part and complete the RMA form.
Step 2 -
Print the RMA form that is sent to your email, and put it in the box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
After we receive your item, we will perform an inspection and an authorization to repair will be sent for your approval. Work will begin after your authorization is received.
