CSL Part Number: 116746

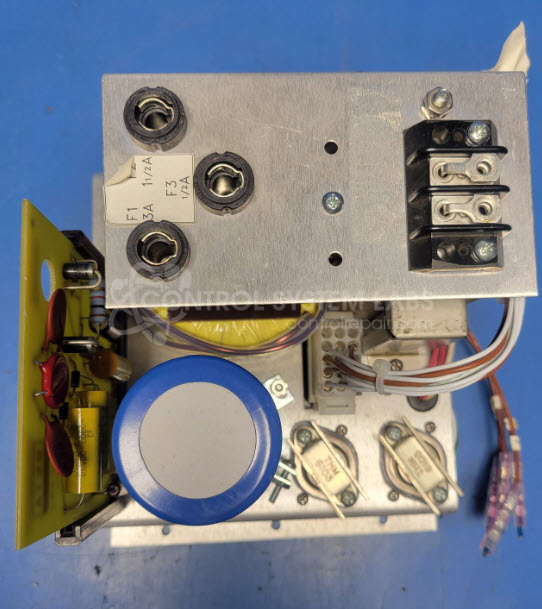

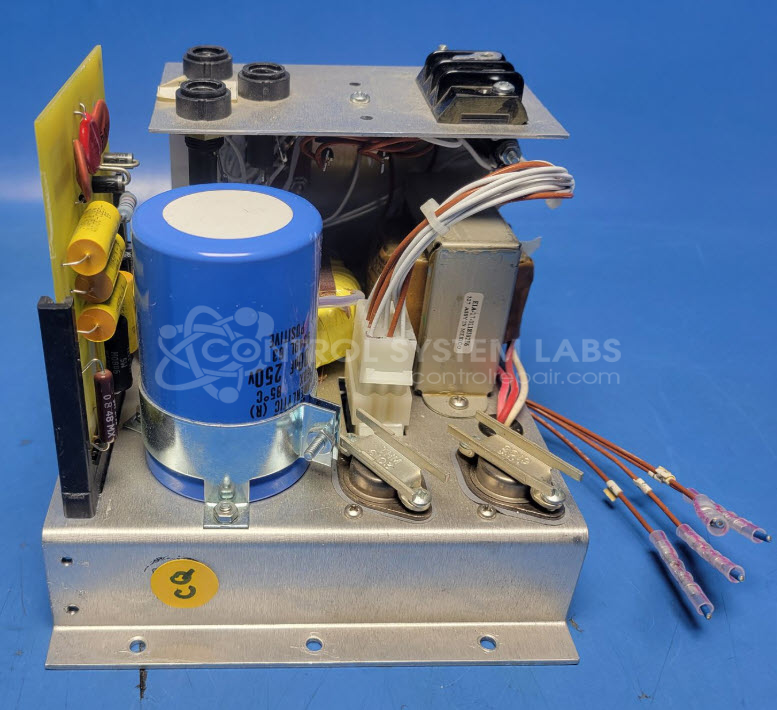

Product Overview: The Hathaway Beta 306555-002 (also known as 327-R) is a multi-output linear power supply from the 321R series. It delivers multiple DC voltage outputs including approximately 12.8V, 24.8V, and 144.2V from a 125VDC input, commonly accessed via a brown wire terminal configuration. This unit features replaceable 3AG fuses, NPN bipolar transistors in switching and regulation circuits, and axial electrolytic filter capacitors. It is typically used in industrial control systems and automation equipment requiring multiple isolated or regulated DC voltages.
Category: Power Supply
Manufacturer: Hathaway Beta
Manufacturer Part Number: 306555-002

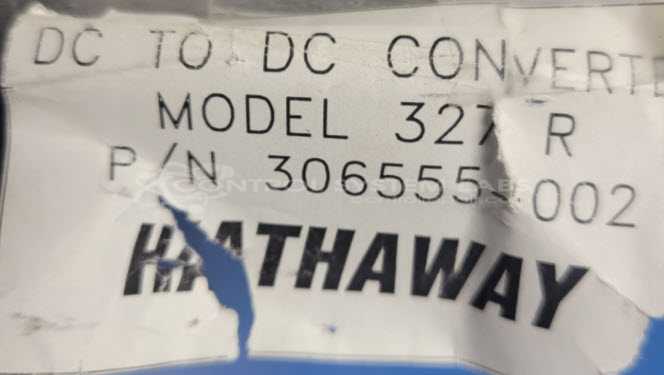

Also Known As(AKA): 327-R
Please include wiring diagrams with it.
Common Failures
Typical issues with the Hathaway Beta power supply include defective components such as transistors and Zener diodes. Missing terminal screws and fuse holders are also common. Preventative maintenance often involves replacing capacitors that do not meet temperature rating requirements, as well as upgrading components to match specific customer requirements.
Repair Approach
Repairs generally involve replacing defective transistors, Zener diodes, and ensuring capacitors are rated appropriately for high temperature operation. Missing parts like fuse holders, fuses, and terminal screws are replaced to restore unit functionality. Preventative maintenance plays a key role, with replacements made to refresh shelf life components.
Testing & Quality
Repaired units undergo a comprehensive testing protocol, including diagnostic testing to verify key component performance and a standardized power supply burn-in test to ensure stability. Initial and post-repair output voltages are measured to confirm consistent performance, aligning with customer specifications where available.
