Home >  Heidelberg 00.785.0837/02 WDPM2 Module

Heidelberg 00.785.0837/02 WDPM2 Module

Repair

Repair Price: $ 1,700.00

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/67243/image_1920?unique=b9c56b6
  • Condition

Purchase Price: $ 0.00 $ 0.00 1700.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 83628

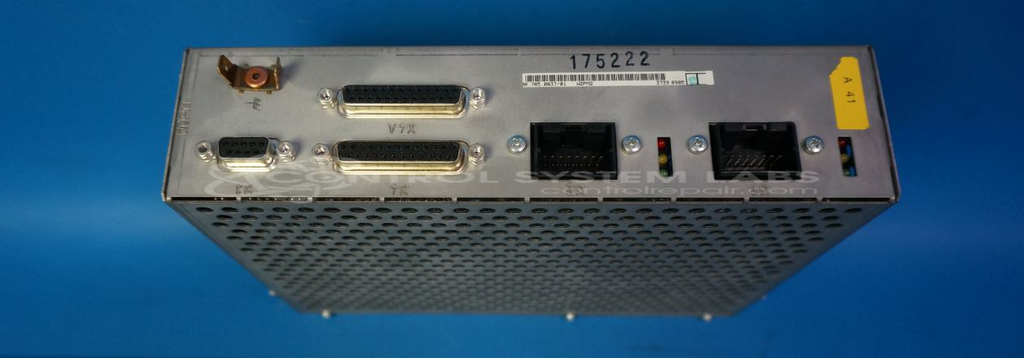

Product Overview: A control module used in offset printing presses to manage the blanket and back cylinder wash-up unit. It regulates the automated cleaning sequence for the cylinders and incorporates an onboard switching power supply for internal circuit operation.
Category: Control Module
Manufacturer: Heidelberg
Manufacturer Part Number: 00.785.0837/02

Common Failures

Reported issues include units that do not start or that cease operations in certain modules. These problems may occur in modules related to specific automated tasks, such as blanket and back cylinder wash-up units.

Repair Approach

Initial diagnostics typically involve checking power supply circuits and inspecting components for signs of thermal stress. Technicians may replace capacitors and trace signal paths to isolate the cause. In some cases, without complete schematic or plugin information, the root cause may remain unclear and repair attempts may be unsuccessful.

Testing & Quality

Verification can be challenging when reported issues cannot be reproduced during bench tests. Testing includes applying proper voltage levels and inspecting components. In cases where all circuits function according to specifications with no detectable faults, the unit may be returned without repairs as No Fault Detected.

Service and repair your broken Heidelberg part


We can repair your Heidelberg model 00.785.0837/02 in our facility. Let our skilled technicians get your Heidelberg back in operation quickly.


Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.

Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.

Step 3 - Ship or mail the box to the address listed on the RMA.
