CSL Part Number: 118953

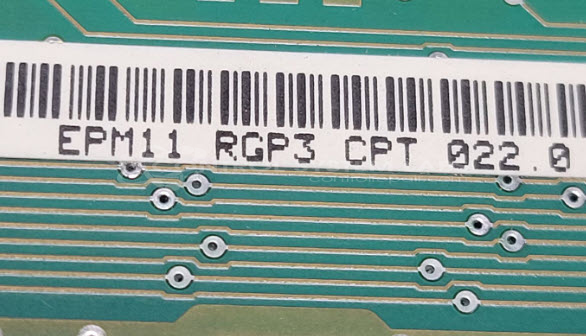

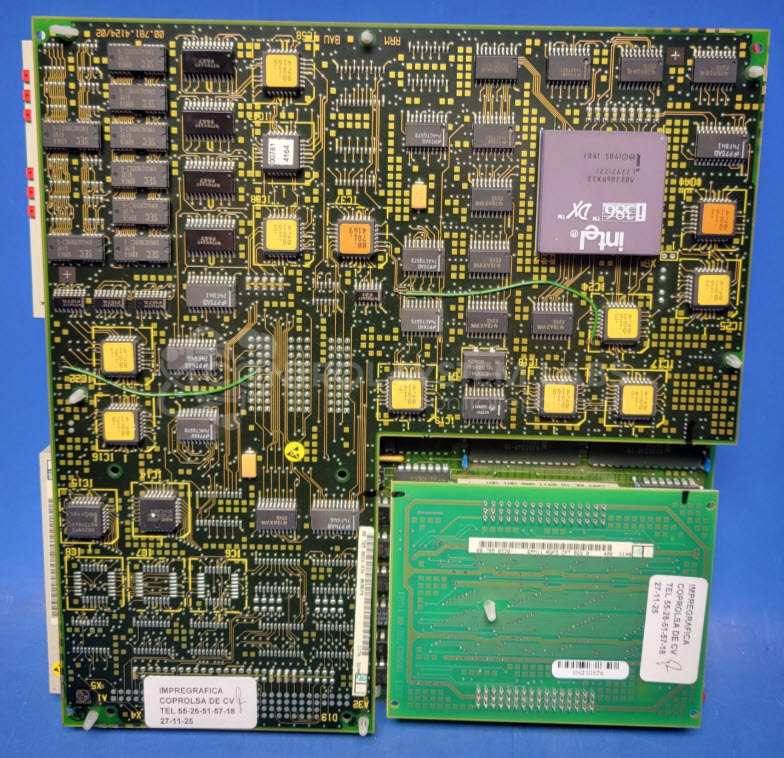

Product Overview: The RGP3/RRM and CPT boards are a set of interconnected control boards used in Heidelberg printing press systems. This assembly consists of three circuit boards designated RGP3, RRM1, and EPM11, which work together to manage press control functions. These boards are typically found in older Heidelberg offset printing equipment where they coordinate various operational sequences and motor control tasks. The modular design allows the boards to interface with each other through multiple connection points, facilitating communication between different press subsystems.
Category: Control Board
Manufacturer: Heidelberg

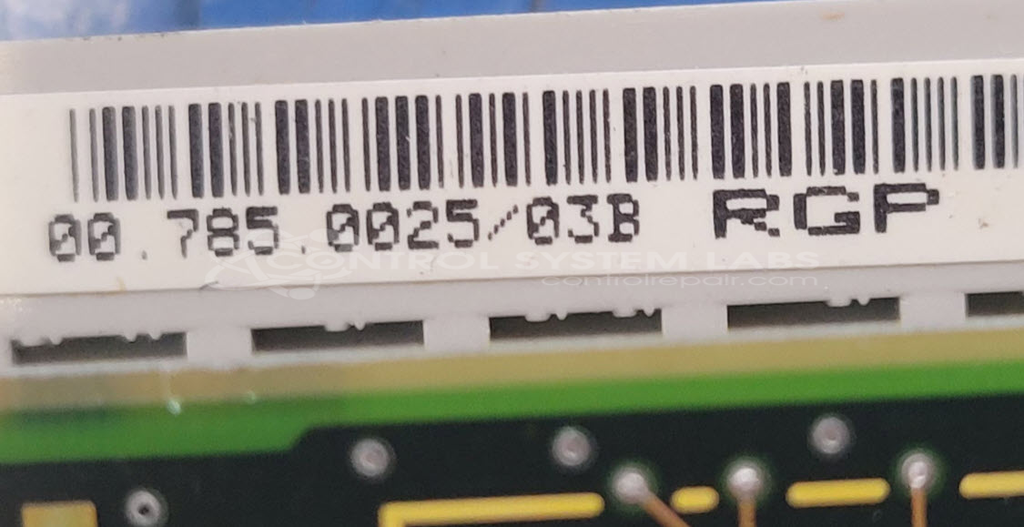

Manufacturer Part Number: 785-0025/03B 785-0026/03A 785-0330
No systems test available on this item. Limited repairs and testing.
Common Failures
Common issues observed with this product include solder bridges and lead contact faults. These electrical conditions may result in operational malfunctions.
Repair Approach
Our repair process includes inspection for solder bridges and lead alignment concerns. When identified during evaluation, these issues may be addressed through component replacement or correction of short circuit conditions.
Testing & Quality
Following repair work, component-level testing and limited power-up procedures are performed. Please note that a full system-level test is not included with this repair service. This repair is performed on a Time and Materials basis, billed for labor and material spent attempting repair, and is not warrantied.
Limited Repair
The Heidelberg part number is only available as a limited repair at our facility. Repairs to this item may be limited due to several reasons:
- Availability of parts
- Less than 100% test ability due to required support equipment
To have us attempt a repair on your Heidelberg part follow these steps:
Step 1 -
Click the Repair Now button above to add the part and complete the RMA form.
Step 2 -
Print the RMA form that is sent to your email, and put it in the box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
After we receive your item, we will perform an inspection and an authorization to repair will be sent for your approval. Work will begin after your authorization is received.
