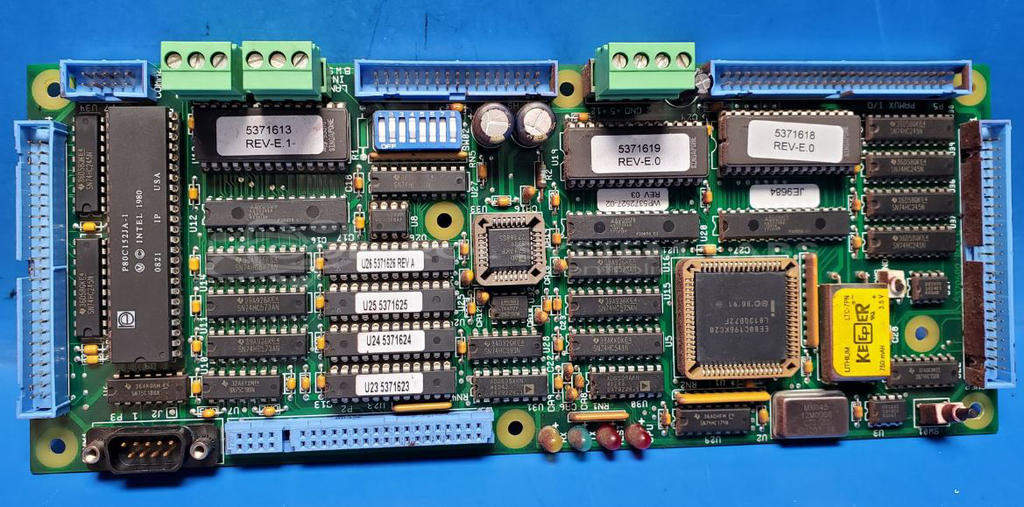

Heidelberg WP5372527-02 Embedded Ink Key Controller Board
Repair
Call for price
Purchase
CSL Part Number: 101995
Product Overview: The Embedded Ink Key Controller Board (Heidelberg WP5372527-02) is a control board used in printing press systems to manage automated ink key adjustments. It regulates ink flow across print zones for consistent color density and registration. The board operates on multi-voltage power supplies (+5VDC, +12VDC, -12VDC) and includes onboard diagnostic LEDs (Rx, TEST, CPU), a 3.6V lithium backup battery for memory retention, and a reset switch. Commonly found in Heidelberg printing equipment and compatible systems like Goss International presses.
Category: Control Board
Manufacturer: Heidelberg
Manufacturer Part Number: WP5372527-02
include wiring diagrams with the item and a good clear symptom orproblem description when sending in. Without those this is a limited repair.
Limited Repair
The Heidelberg part number is only available as a limited repair at our facility. Repairs to this item may be limited due to several reasons:
- Availability of parts
- Less than 100% test ability due to required support equipment
To have us attempt a repair on your Heidelberg part follow these steps:
Step 1 -
Click the Repair Now button above to add the part and complete the RMA form.
Step 2 -
Print the RMA form that is sent to your email, and put it in the box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
After we receive your item, we will perform an inspection and an authorization to repair will be sent for your approval. Work will begin after your authorization is received.
