CSL Part Number: 101034

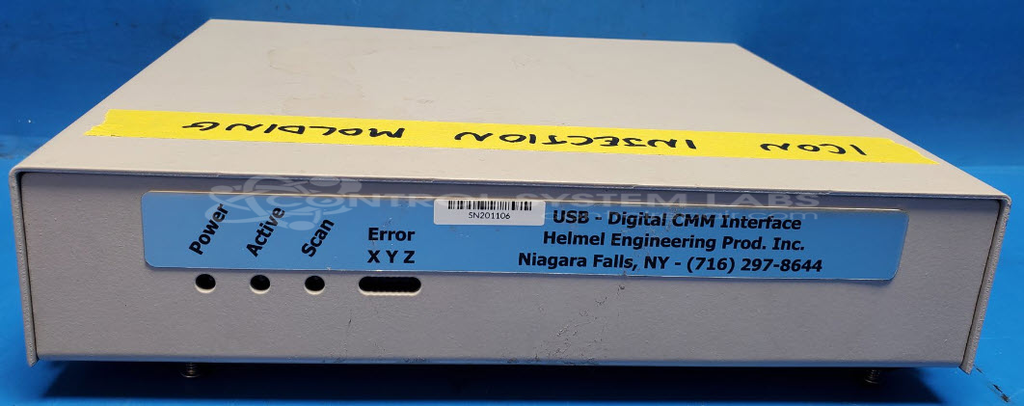

Product Overview: The USB-Digital CMM Interface Unit is a data acquisition and control interface designed to connect Coordinate Measuring Machines (CMMs) to computer systems via USB. Manufactured by Helmel Engineering Products, it processes position data from CMM X, Y, and Z axis sensors and transmits measurements digitally for inspection and quality control applications. The unit contains 5V and 12V linear voltage regulators, 74-series logic ICs for signal processing, and requires both external 9V DC power and USB connection to operate. It features status LEDs for power and axis error indication and includes an internal cooling fan.
Category: Control Assembly
Manufacturer: Helmel Engineering Products
Manufacturer Part Number: 70354-000-AE
Limited Repair
The Helmel Engineering Products part number is only available as a limited repair at our facility. Repairs to this item may be limited due to several reasons:
- Availability of parts
- Less than 100% test ability due to required support equipment
To have us attempt a repair on your Helmel Engineering Products part follow these steps:
Step 1 -
Click the Repair Now button above to add the part and complete the RMA form.
Step 2 -
Print the RMA form that is sent to your email, and put it in the box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
After we receive your item, we will perform an inspection and an authorization to repair will be sent for your approval. Work will begin after your authorization is received.
