Repair
Repair Price: $ 409.00
Purchase
CSL Part Number: 110490

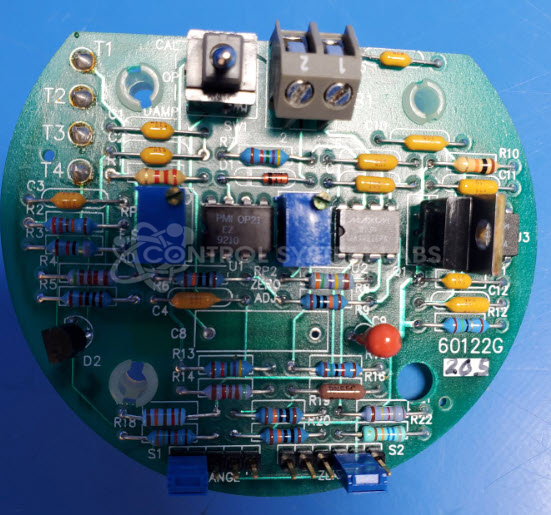

Product Overview: The Mark V Target Strain Gage Flowmeter Board, manufactured by Hersey Measurement Company (also known as Aaliant, Venture Measurement, Niagara Meters, and Anderson Negele), is a key component in flow measurement systems. It is often used in industrial settings requiring precise fluid flow measurement. The board operates with a 24V input and outputs 4-20mA signals, interfacing with controllers like the ABB CM50.
Category: Flowmeter
Manufacturer: Hersey Measurement Company
Alternate Manufacturer Names: Aaliant, Venture Measurement, Niagara Meters, Anderson Negele
Manufacturer Part Number: 60122G205
Series: Mark V Target Meter
Also Known As(AKA): 60122P110
Other Synonyms: Aaliant, Venture Measurement, Niagara Meters, Anderson Negele
Include problem description, pipe size, process conditions and manuals wiring diagrams when sending in for repair. Calibration is not included in standard repair price. If used with hazardous chemicals include decontamination statement Do not remove circuit boards from the housing, send in intact. If strain gage sensor that is sealed inside the metal tube is damaged that may not be repairable.
Common Failures
Several units have been returned with issues primarily related to incorrect or no sensor output readings, as well as units not reacting correctly. In some cases, defective components such as capacitors have been identified during evaluation. Corrosion has also been noted as a contributing factor in some failures.
Repair Approach
Repairs may involve replacing defective components and verifying circuit connections. Additional steps can include standard cleaning procedures and ensuring correct configuration settings. In cases where corrosion is present, cleaning and refurbishing of affected parts is performed as needed.
Testing & Quality
Upon completion of repairs, units undergo diagnostic testing to verify functionality, which may include verification of input voltage and output signal levels. Items are subjected to appropriate testing procedures and quality checks before return to the customer.
Limited Repair
The Hersey Measurement Company part number is only available as a limited repair at our facility. Repairs to this item may be limited due to several reasons:
- Availability of parts
- Less than 100% test ability due to required support equipment
To have us attempt a repair on your Hersey Measurement Company part follow these steps:
Step 1 -
Click the Repair Now button above to add the part and complete the RMA form.
Step 2 -
Print the RMA form that is sent to your email, and put it in the box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
After we receive your item, we will perform an inspection and an authorization to repair will be sent for your approval. Work will begin after your authorization is received.
