CSL Part Number: 79903

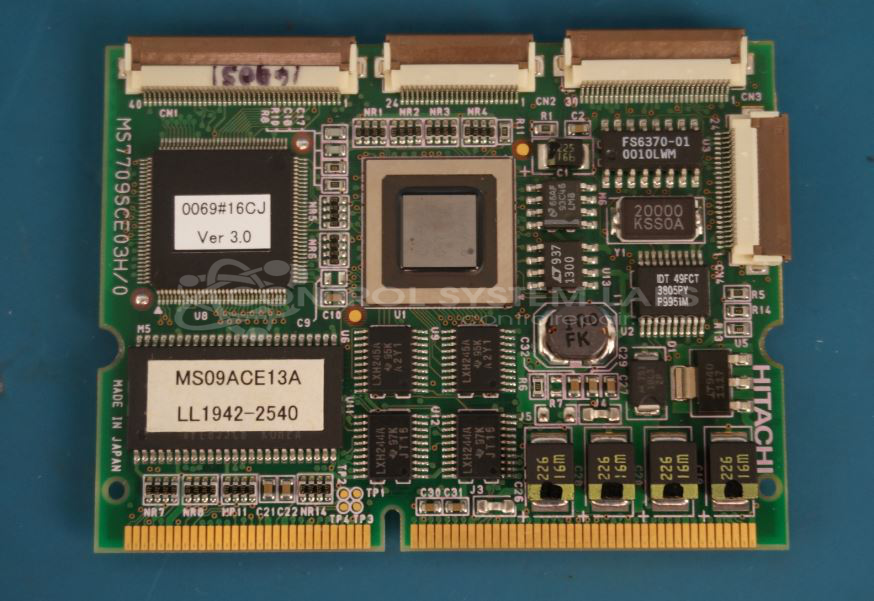

Product Overview: The MS7709SCE03H/0 is a Hitachi control board designed for the Roboshot 165I injection molding machine, specifically controlling the machine's monitor interface. It features complex integrated circuitry including a CPU, flash memory, CPLD (Complex Programmable Logic Device), and onboard DC/DC converter for power regulation. This board serves as the communication and display controller, managing operator interface functions for the injection molding system.
Category: Control Board
Manufacturer: Hitachi
Manufacturer Part Number: MS7709SCE03H/0
Repairs on this item are limited. Depending on the failure, this item may be repairable. Contact Control System Labs, or send it in for a free evaluation.
Common Failures
This control unit for a Roboshot 165I injection molding machine may exhibit symptoms such as failure to power on. The control board contains complex components including CPU, flash memory, and various converters.
Repair Challenges
Due to the complexity of the board design and component-level issues that may be present, repairs can be challenging. A thorough evaluation is required to determine the feasibility of repair and identify the specific components involved.
Repair Approach
We can evaluate this unit and provide a quotation before any repair work begins. If repair is pursued on a Time and Materials basis, the work is billed for labor and material spent attempting repair and is not warrantied. We will review the unit and update you once we have more information regarding repairability and next steps.
Limited Repair
The Hitachi part number is only available as a limited repair at our facility. Repairs to this item may be limited due to several reasons:
- Availability of parts
- Less than 100% test ability due to required support equipment
To have us attempt a repair on your Hitachi part follow these steps:
Step 1 -
Click the Repair Now button above to add the part and complete the RMA form.
Step 2 -
Print the RMA form that is sent to your email, and put it in the box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
After we receive your item, we will perform an inspection and an authorization to repair will be sent for your approval. Work will begin after your authorization is received.
