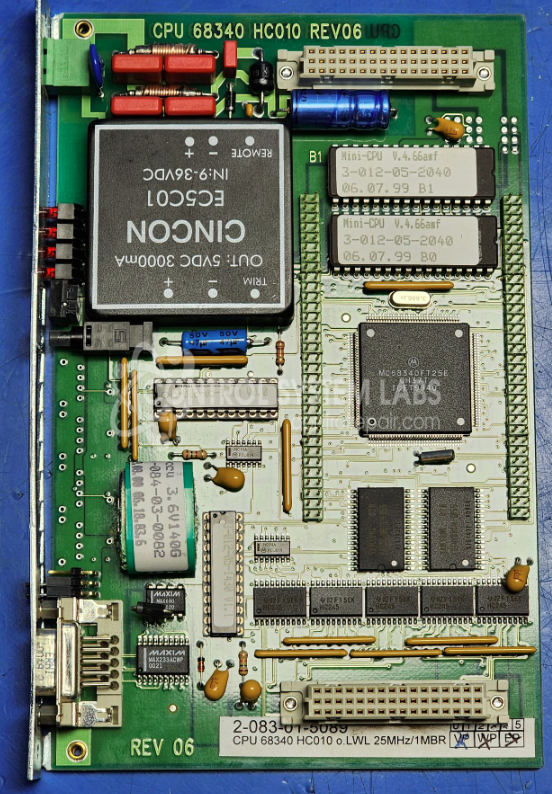

Homatic 2-083-01-5089 Homatic CPU Board
Repair
Repair Price: $ 1,274.00
Purchase
CSL Part Number: 107416
Product Overview: The Homatic CPU Board (part number 2-083-01-5089) is a processor module from the HC010 series, built around a Motorola 68340 microprocessor running at 25 MHz with 1 MB of RAM. It serves as the central control unit in Homatic automation systems, executing program logic and managing I/O communications. This board typically interfaces with daughter cards and peripheral modules to control industrial machinery and processes.
Category: CPU Board
Manufacturer: Homatic
Manufacturer Part Number: 2-083-01-5089
Also Known As(AKA): CPU 68340 HC010 o.LWL 25 MHz/1 MBR
We prefer this be sent in with it's card rack and other boards to be tested together
```html
Common Failures
Battery leakage is commonly observed with this product, which can lead to corrosion and damage to internal components. This may result in intermittent signal issues.
Repair Approach
Our repair process involves cleaning the affected area and evaluating the extent of corrosion damage. We will review the unit and provide a quotation once the evaluation is complete. If corrosion damage is extensive, the unit may be classified as Beyond Economic Repair (BER).
```Limited Repair
The Homatic part number is only available as a limited repair at our facility. Repairs to this item may be limited due to several reasons:
- Availability of parts
- Less than 100% test ability due to required support equipment
To have us attempt a repair on your Homatic part follow these steps:
Step 1 -
Click the Repair Now button above to add the part and complete the RMA form.
Step 2 -
Print the RMA form that is sent to your email, and put it in the box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
After we receive your item, we will perform an inspection and an authorization to repair will be sent for your approval. Work will begin after your authorization is received.
