Repair
Repair Price: $ 684.00
Purchase
CSL Part Number: 26264

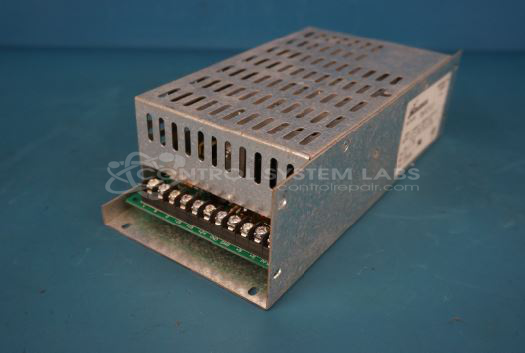

Product Overview: The Honeywell 14506471 is a switching power supply that provides four isolated DC outputs: +5VDC at 4.8A, +24VDC at 1.25A, +15VDC at 0.45A, and -15VDC at 0.45A. It uses a UC3842 PWM controller and features screw terminal outputs for easy installation. The +5V rail regulates the entire unit and requires a minimum load of approximately 0.5A for proper regulation of all outputs. Commonly found in industrial control systems and automation equipment where multiple voltage rails are needed.
Category: Power Supply
Manufacturer: Honeywell
Manufacturer Part Number: 14506471
Also Known As(AKA): 10-0101 MICROENERGY
Power supplies are tested with a minimum 4-hour burn-in, under load.
Common Failures
Issues identified with this product have included defective components such as MOSFETs, diodes, capacitors, and resistors. These failures may result in symptoms such as partial short circuits, burnt components, and erratic output voltages.
Repair Approach
The repair process typically involves replacing defective components such as MOSFETs, diodes, and capacitors. In some cases, high-failure-rate capacitors are replaced as part of the repair to help prevent future failures. Missing hardware such as terminal screws may also be replaced when needed.
Testing & Quality Assurance
After repairs, units undergo testing, which may include burn-in tests with electronic loads to simulate operational conditions. Testing is performed to verify that output voltages remain within specified limits. All repair work is performed by qualified CSL technicians following our standard quality assurance procedures.
Service and repair your broken Honeywell part
We can repair your Honeywell model 14506471 in our facility. Let our skilled technicians get your Honeywell back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
