Repair
Repair Price: $ 2,414.00
Purchase
CSL Part Number: 74021

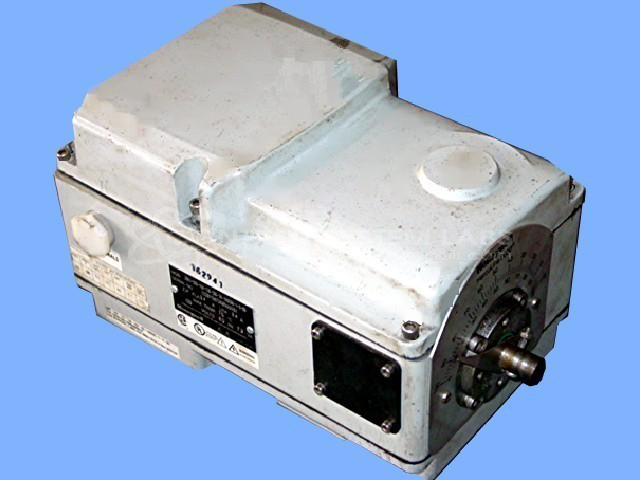

Product Overview: The Herculine 2000 Actuator is an electric actuator manufactured by Honeywell for industrial process control applications. It accepts standard current or voltage input signals (typically 4-20 mA or 0-5V) and converts them to proportional rotary motion for positioning valves, dampers, or other control elements. Commonly used in paper mills and other process industries, it features adjustable travel limits, programmable rotation direction, and position feedback capability. The unit includes cam-based limit switches and requires calibration to match input signal ranges to mechanical positioning requirements.
Category: Actuators
Manufacturer: Honeywell
Manufacturer Part Number: 2001-200-150-126-200-20-100000-1-0-00
Series: Herculine 2000 Actuator
2001-200-150-126-200-20-100000-1-0-00
Common Failures
This product has experienced several types of issues. In some cases, internal wiring has been damaged, such as a wire to the trip switch. Other problems have included failure to accept programming changes and loss of position sensor functionality. These issues can affect the product's ability to operate within specified parameters.
Repair Approach
Repairs have involved rewiring to restore functionality, verifying calibration, and making necessary adjustments to settings. In instances where programming was affected, settings were recalibrated and reprogrammed. Regular cleaning and verification of components have also been part of the repair process.
Testing & Quality
Testing is conducted to confirm product functionality post-repair. This includes burn-in testing with load to simulate operating conditions and confirm the stability of programming settings. Each item is tested before return to the customer.
Service and repair your broken Honeywell part
We can repair your Honeywell model 2001-200-150-126-200-20-100000-1-0-00 in our facility. Let our skilled technicians get your Honeywell back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
