Repair
Repair Price: $ 2,414.00
Purchase
CSL Part Number: 67932

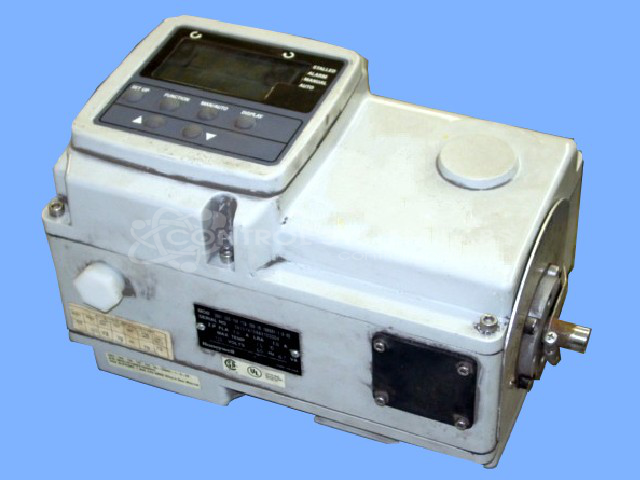

Product Overview: The Honeywell Herculine 2000 Actuator is an electric rotary actuator designed for precise valve and damper control in industrial process applications. It features a motorized gearbox that converts 4-20mA input signals into proportional rotational movement, typically with stroke ranges from 10 to 150 degrees. Common configurations include 120V AC power, adjustable timing (such as 30-second travel), and auxiliary limit switches for position indication. These actuators are widely used in paper manufacturing, HVAC systems, and other industries requiring automated valve positioning and flow control.
Category: Actuators
Manufacturer: Honeywell
Manufacturer Part Number: 2001-200-150-126-200-20-100001-1-0-00
Series: Herculine 2000 Actuator
2001-200-150-126-200-20-100001-1-0-00
Common Failures
Common issues include physical damage such as dislodged gears, faulty connections like damaged ribbon cables, and defective components including blown fuses and non-functional displays. Loose internal hardware and missing components such as local display interfaces are also frequently observed. Some units cannot be repaired due to unavailable parts.
Repair Approach
Repairs typically involve cleaning, recalibrating motors, replacing defective components such as ribbon cables and display units, and securing loose connections. In cases where components are obsolete or unavailable, repair may not be possible and units are returned unrepaired. Preventive replacement of capacitors may be performed to support long-term reliability.
Testing & Quality
Functional testing includes verifying input calibration and motor operation under automatic and manual controls. Units undergo extended testing and burn-in procedures to confirm they meet operational standards. Successfully repaired units are subject to thorough multi-level testing to verify restored functionality.
Service and repair your broken Honeywell part
We can repair your Honeywell model 2001-200-150-126-200-20-100001-1-0-00 in our facility. Let our skilled technicians get your Honeywell back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
