Repair
Repair Price: $ 1,292.00
Purchase
CSL Part Number: 60690

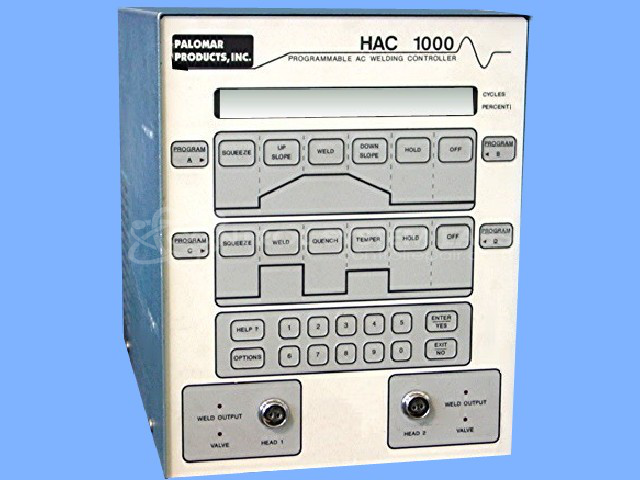

Product Overview: The HAC-1000-C02 is a precision AC resistance welder manufactured by Hughes Aircraft Co. (marketed by Palomar Products Inc.) for thermocompression and resistance bonding applications. This single-phase unit operates at 460V, 10A, 50-60Hz and features programmable weld parameters stored in non-volatile memory. It includes an LCD display with electroluminescent backlighting and delivers controlled current output through an isolated transformer. Commonly used in electronics assembly, semiconductor packaging, and wire bonding operations requiring precise, repeatable weld energy control.
Category: Welders
Manufacturer: Hughes Aircraft Co.
Manufacturer Part Number: HAC-100-C02
Also Known As(AKA): PALOMAR PRODUCTS INC
Common Failures
Customers frequently report issues with the unit not operating properly, often due to non-volatile memory failure and a failed LCD display backlight. These symptoms result in the logic board not storing system settings and a display that is difficult to see.
Repair Approach
Repairs typically involve replacing the non-volatile memory component and the Electroluminescent backlight of the LCD display. Additionally, cords and connectors are inspected and replaced as needed to ensure reliable power delivery.
Testing & Quality
Post-repair, units undergo testing, including a Burn-In Test with a 100 Amp load. The product is also visually checked to confirm display visibility and overall unit functionality.
Service and repair your broken Hughes Aircraft Co. part
We can repair your Hughes Aircraft Co. model HAC-100-C02 in our facility. Let our skilled technicians get your Hughes Aircraft Co. back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
