CSL Part Number: 57904

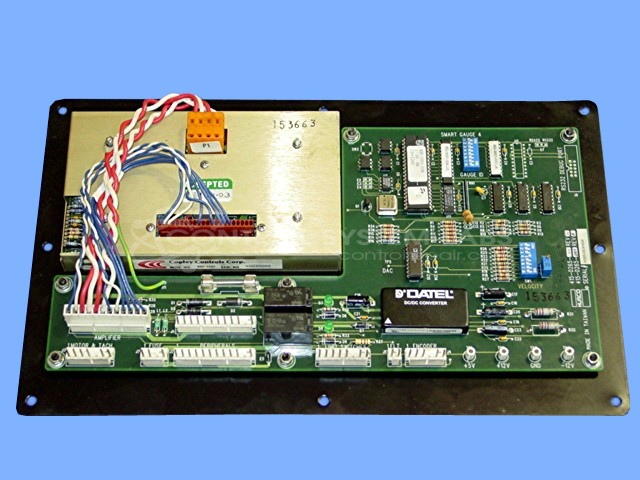

Product Overview: The Smart Gauge 4 Board with Power Supply is a control board designed for Hurco CNC machine tools. It features an integrated DC/DC converter that accepts 12VDC input and outputs regulated 5V and ±12V supplies for system components. The board includes electrolytic capacitors and SPDT relays for power distribution and control functions. It is used in Hurco machining centers to provide stable power to gauge or measurement subsystems.
Category: Control Board
Manufacturer: Hurco
Manufacturer Part Number: 415-0265-903
Send in with machine wiring diagrams
Common Failures
Common issues include lack of power output. Visual inspection may reveal discolored components; however, discoloration may be dust accumulation rather than component failure.
Repair Approach
Typical repair procedures may include replacement of electrolytic capacitors and relays as needed based on evaluation findings. Repairs are performed to restore proper voltage output where possible.
Testing & Quality
Post-repair testing includes a burn-in period to verify voltage outputs. Testing is conducted at the module level and does not constitute a full system-level test. Time and Materials repairs are billed for labor and material spent attempting repair and are not warrantied.
Limited Repair
The Hurco part number is only available as a limited repair at our facility. Repairs to this item may be limited due to several reasons:
- Availability of parts
- Less than 100% test ability due to required support equipment
To have us attempt a repair on your Hurco part follow these steps:
Step 1 -
Click the Repair Now button above to add the part and complete the RMA form.
Step 2 -
Print the RMA form that is sent to your email, and put it in the box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
After we receive your item, we will perform an inspection and an authorization to repair will be sent for your approval. Work will begin after your authorization is received.
